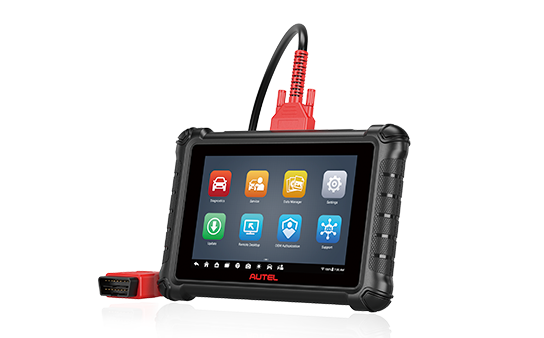

Autel MaxiCheck MX900
Autel MaxiCheck MX900
Regular price
$1,089.00 AUD
Regular price
Sale price
$1,089.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
All Systems Diagnostics & Service Tablet
The MaxiCheck MX900 is an all systems diagnostics tablet, compatible with US, Asian & European vehicles (1996 on). This Android-based diagnostic tablet features an 8-inch touchscreen and a quad-core processor for an enhanced diagnostic experience.
Key Features
- High-resolution, 8-Inch touchscreen display
- Android 11 / Quad-core processor / 64GB Storage
- Comprehensive system coverage of US, Asian & European vehicles.
- Extensive OE-Level system coverage for all electronic systems.
- Read/Clear fault codes, analyze live data, ECU Information, active testing and advanced special function capabilities.
- Supports the latest communication protocols, including DoIP & CAN FD.
- Rapidly access vehicle identification with smart AutoVIN technology.
- Thorough selection of service & maintenance capabilities.
- Detailed PreSCAN & PostSCAN reports
- Automatic software updates with live push notifications over Wi-Fi
- Remote access technical support & troubleshooting.
- Shop management application to maintain data files, vehicle records and customer infomation.
- Convenient data management system for managing internal application and reviewing data.
Autel MaxiCheck MX900 Specifications
| Operating System | Android 11 |
| Processor | Quad core Processor(1.8GHz) |
| Memory | 4GB RAM & 64GB ROM |
| Display | 8-inch LCD capacitive touchscreen with 1280x800 resolution |
| Rear Camera | 8 MP |
| Connectivity | USB Type-C |
| USB 2.0 | |
| Wi-Fi | |
| Mini SD card (supports up to 64GB) | |
| Audio Input/Output | Input: N/A |
| Output: buzzer | |
| Power and Battery | 3.7 V/7700mAh lithium-polymer battery |
| Charges via 5 VDC power supply | |
| Battery Charging Input | 5V/3 A |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -10 to 60°C (14 to 140°F) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD |
