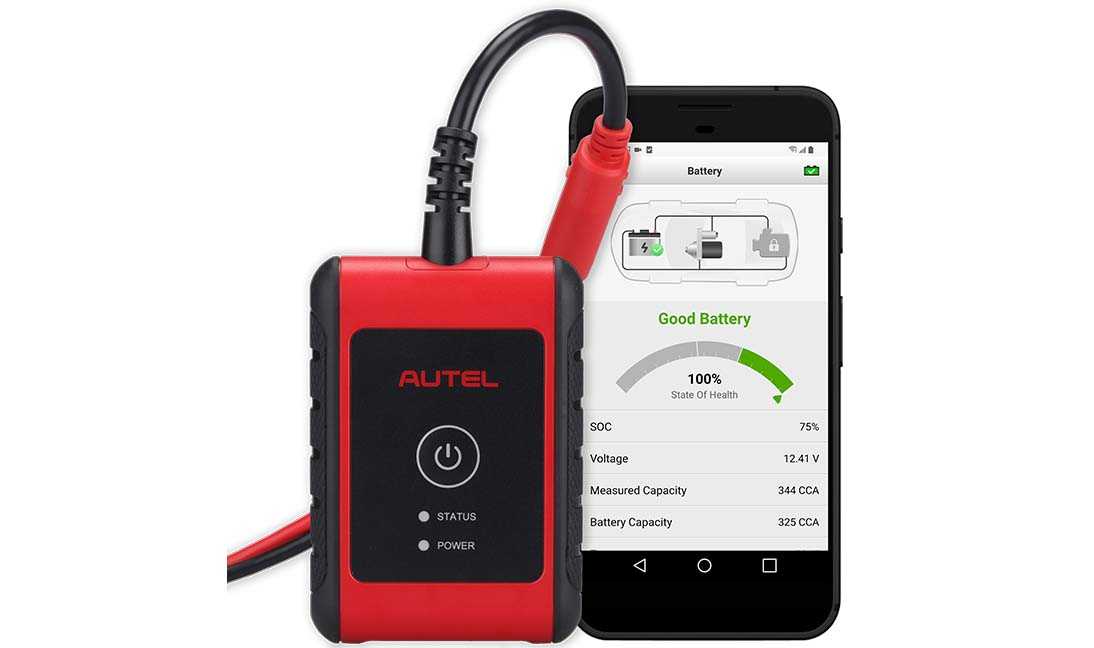

The BT508 is a powerful and lightweight battery and electrical system tester, utilizing Adaptive Conductance for a precise assessment of the battery's cold cranking ability and reserve capacity. For effortless testing and display of results, use the free mobile app for iOS and Android devices. Additionally, the BT508 comes with a wireless Bluetooth vehicle communication interface for battery and electrical component registration.
Key Features
Support in-vehicle and out-of-vehicle battery testing for passenger vehicles.
12 Volt battery testing (100 - 2000 CCA).
12 Volt cranking & charging system testing.
Supports Flooded, AGM, AGM Spiral, EFB & GEL batteries.
Compatible with CCA, CA, SAE, EN, IEC, JIS, MCA.
One-touch battery registration.
Detailed instruction diagrams for battery positioning & testing.
Read & Erase codes of all available systems.
Autel MaxiBAS BT508 Specifications
Item
Description
Connectivity
USB 2.0, Type C
Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage
5V DC
Working Current
< 150 mA at 12 V DC
CCA Range
100 to 2000 A
Voltage Range
1.5 to 16V
Working Temperature
-10° to 50° C (14° to 122° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Dimension (L x W x H)
107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
