Autel MaxiIM IM508
Autel MaxiIM IM508
Couldn't load pickup availability

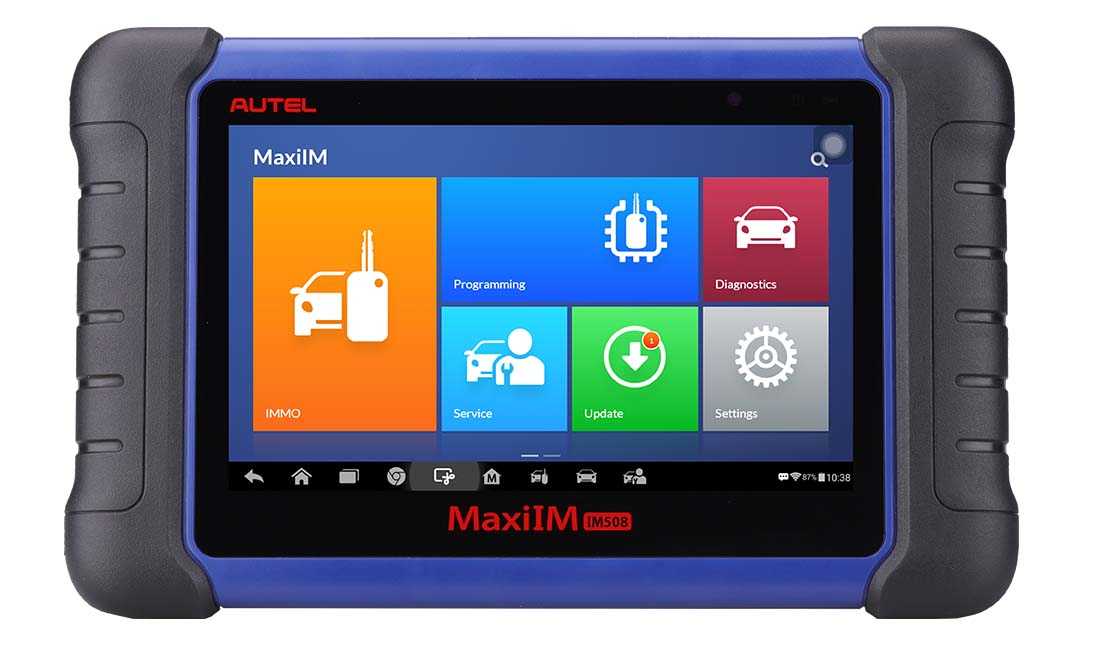

MaxiIM IM508 is a rapid, easy-to-use, and ultraportable immobilizer and key programming tablet. Featuring a 7-inch, high-resolution touchscreen powered by a quad-core processor offering seamless operating experience. This device is capable of professional key & immobilizer programming, all-systems diagnostics and extensive service procedures.

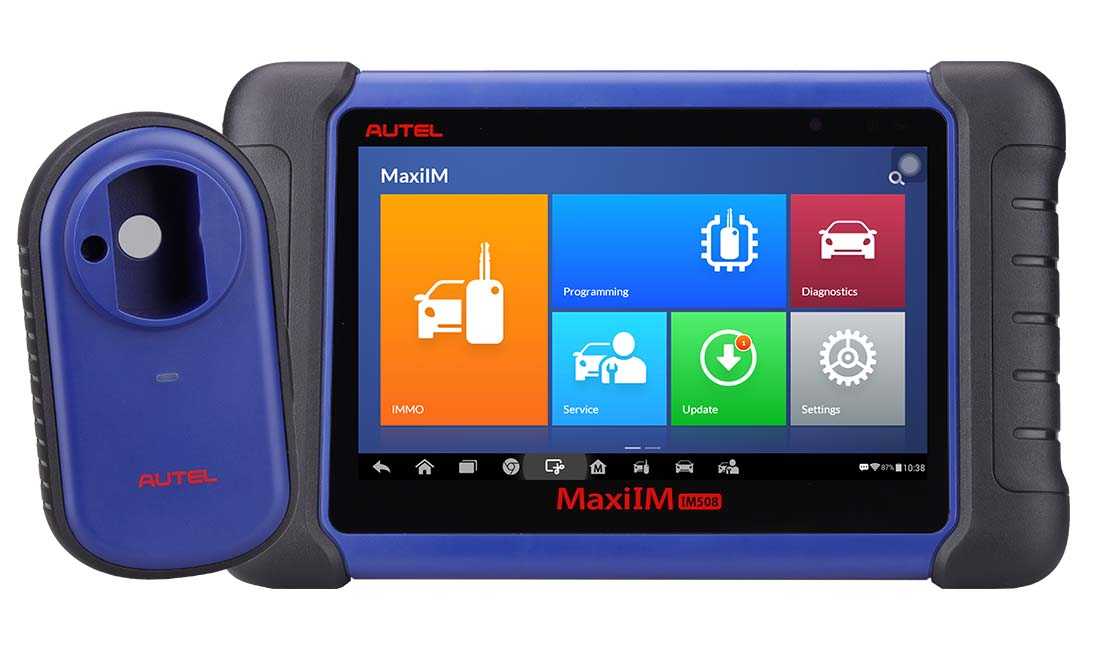

Equipped with the XP200 Key Programmer, the Autel IM508S can perform advanced key & immobilizer functions, including Key & Remote Control Learning and basic EEPROM & MCU Read & Write capabilities. The IM508S also enables technicians to perform all-systems diagnostics scanning, read/erase codes, view freeze frame & live data on US, Asian & European vehicles (1996 & newer) while also offering an extensive menu of common service and maintenance tasks. This includes oil light reset, brake bleed, battery registration, steering angle sensor reset and occupant sensor calibration.
The IM508S also features Report Cloud Management, streamlining report saving and sharing.
The IM508 is the ultimate solution for workshops and technicians who are seeking an affordable IMMO and diagnostic tablet with advanced functionality.
Autel MaxiIM IM508 Specifications
| Operating System | Android™ 4.4.4, KitKat |
| Processor | Cortex-A9 processor(1.6 GHz) |
| Memory | 32GB |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity | Mini USB 2.0 USB2.0 Wi-Fi Micro SD card slot(supports up to 32GB) |
| Sensors | Ambient light sensor for brightness auto changing |
| Power and Battery | 3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply |
| Tested Battery Life | Around 4.5 hours of continuous use |
| Battery Charging Input | 5V/1.5A |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5%-95% non-condensing |
| Net Weight | 885g(2.31|b.) |
|
Supported Automotive Protocols |
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
