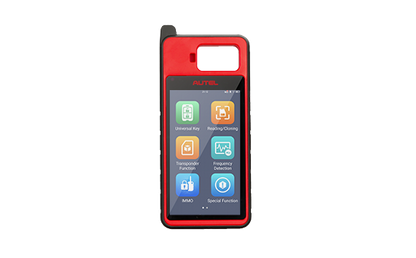

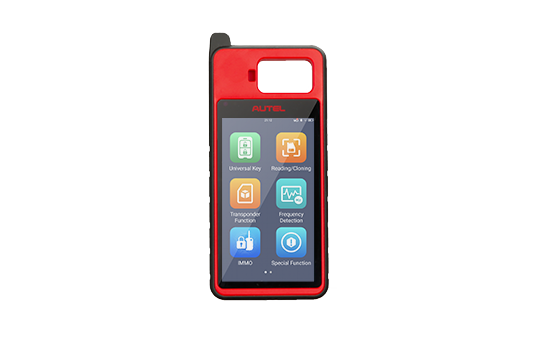

Autel MaxiIM KM100
Autel MaxiIM KM100
Couldn't load pickup availability

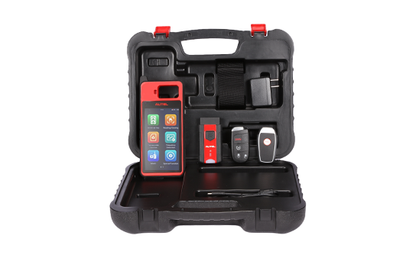

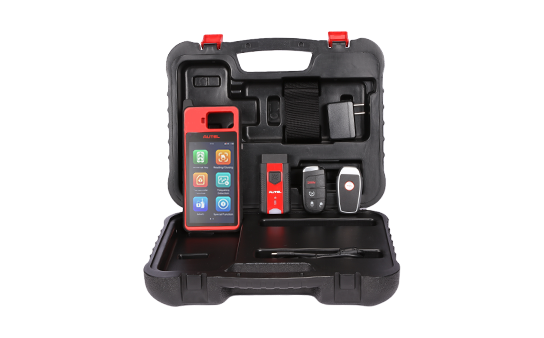

Key Programming Tablet + 2 Programmable iKeys

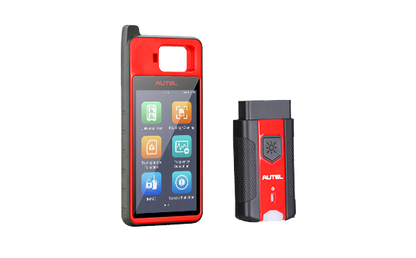

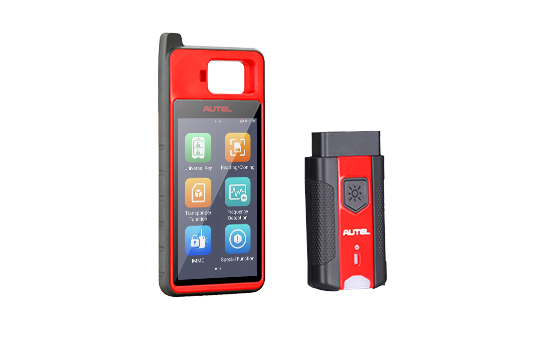

The MaxiIM KM100 is an advanced key and immobiliser tablet designed for smart key creation and IMMO learning via OBD. Featuring an android-based, 5.5-inch touchscreen tablet with a Bluetooth VCI. The MaxiIM KM100 can program the Autel IKEY as a smart key replacement for more than 700 vehicles and offers IMMO programming functionality for various vehicle brands including BMW, Volkswagen, Toyota, Honda and General Motors. Additional innovative features include key renewal and transponder editing of 20 supported protocols.
Key Features
- Programs Autel's IKEY universal key as a smart key replacement for over 700 vehicles
- Extensive IMMO Key Programming coverage.
- Including BMW, Volkswagen, Toyota, Honda and GM
- One-Minute key generation
- Chip Read & Write, Cloning & Frequency Detection
- Rapidly identify vehicle information with AutoVIN
- Straightforward user interface with concise instructions
- Powerful Android-based tablet with 64GB memory and long-lasting rechargeable battery
Autel MaxiIM KM100 Specifications
Dimensions (WxHxD) |
200mm(7.9”) x 89 mm (3.5”) x 22 mm (0.87”) |
Weight |
352.7g (0.8 lb) |
Screen |
5.5-inch screen with 1280 x 720 resolution |
Processor |
Rockchip PX30 (4x ARM Cortex-A35 1.5GHz) |
Operating System |
Android™ 9.0 |
Memory |
2GB RAM/64GB on-board memory |
Camera |
8 megapixels |
Connection |
Wi-Fi Bluetooth 5.0 USB 2.0 type C |
Battery |
4950mAh lithium-polymer battery |
VCI |
V200 |
Input |
5V/2A |
Sensor |
Ambient light sensor |
Audio Input/Output |
MIC: supported Speaker: supported |
Operating Temp |
-10 to 45°C (14 to 113°F) |
Storage Temp |
-20 to 60°C (-4 to 140°F) |
