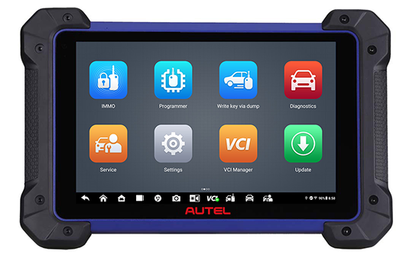

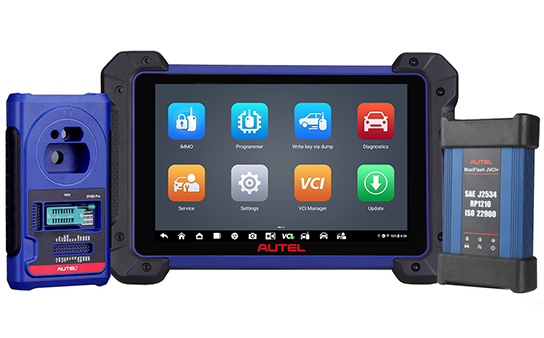

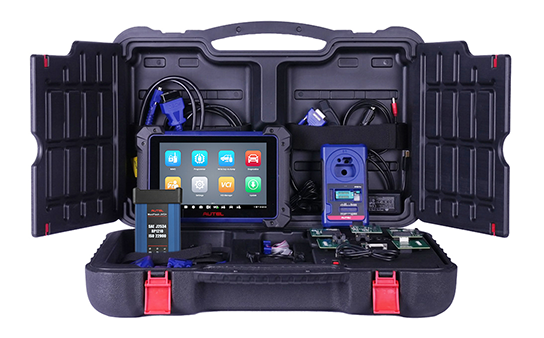

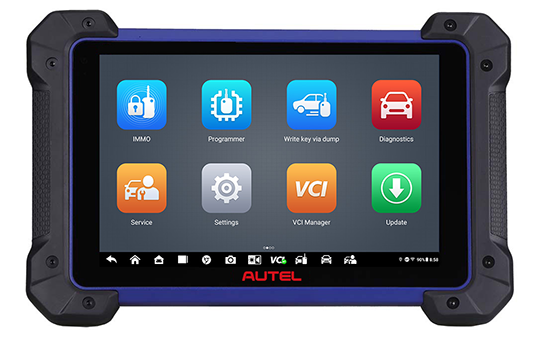

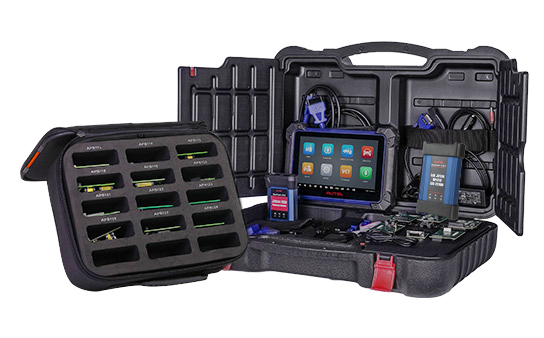

Autel MaxiIM608 PRO II

Name: Autel MaxiIM608 PRO II
Brand: INTEREQUIP PTY LTD
Price: 6195.00 AUD
Availability: InStock

$6,195.00 AUD

Sale Sold out

Shipping calculated at checkout.

All-in-one Key Programming Diagnostic Tool

The Autel MaxIM608 PRO II is an advanced key immobiliser programming tablet with comprehensive diagnostic capabilities, J2534 passthru VCI functions and a range of special service functions.

The IM608 PRO II is the highest tier of key programming, supporting OBD key programming for 80% of the vehicles on the road today.

Key Features

10.1-inch High-resolution touchscreen tablet / Android 10
128GB Storage / Qualcomm octa-core processor (2.2GHz)
Key Generation
Key and remote learning
Immobiliser reset
Coding
Transponder and EEPROM/MCU read and write
40 common maintenance functions
Extensive service/maintenance menu, including direct access to EPB, DPF, SAS, Oil reset, and BMS functions.

Autel MaxiIM608 PRO II Specifications

Operating System	Android 10
Processor	Qualcomm SDM660 Octa-core Processor (2.2GHz )
Memory	4GB RAM &128GB On-board Memory
Display	10.1-inch LED capacitive touchscreen with 1920x1200 resolution
Connectivity	Wi-Fi（802.11a/b/g/n/ac）
	USB 2.0
	SD Card (Support up to 64GB)
Sensors	Light sensor for brightness auto adjust
Power and Battery	15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V (9-24 V)
Power Consumption	6.5W
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions(WXHX D)	300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight	NW: 1.58 kg (3.48 lb.)
Protocols	ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
