Autel MaxiSYS MS909CV Commercial Vehicle
Autel MaxiSYS MS909CV Commercial Vehicle
Regular price
$7,836.55 AUD
Regular price
$8,699.00 AUD
Sale price
$7,836.55 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Commercial Vehicle Diagnostics Tablet With Wireless VCI/J2534

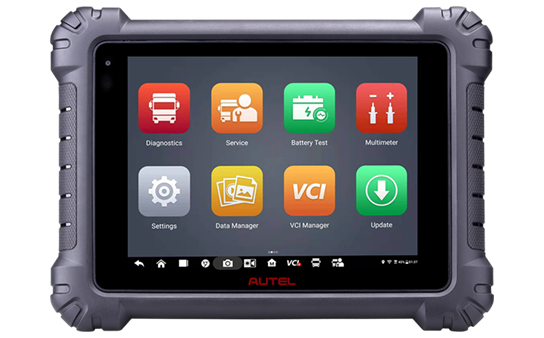

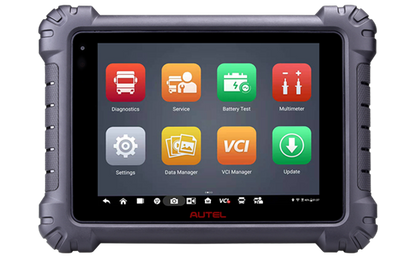

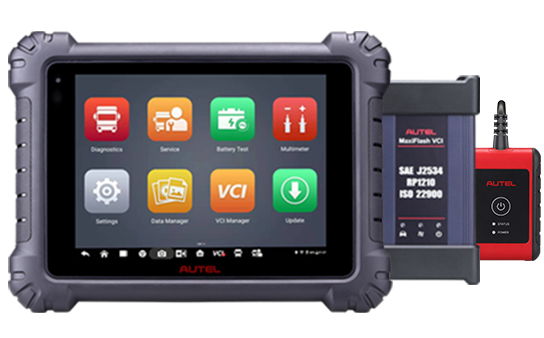

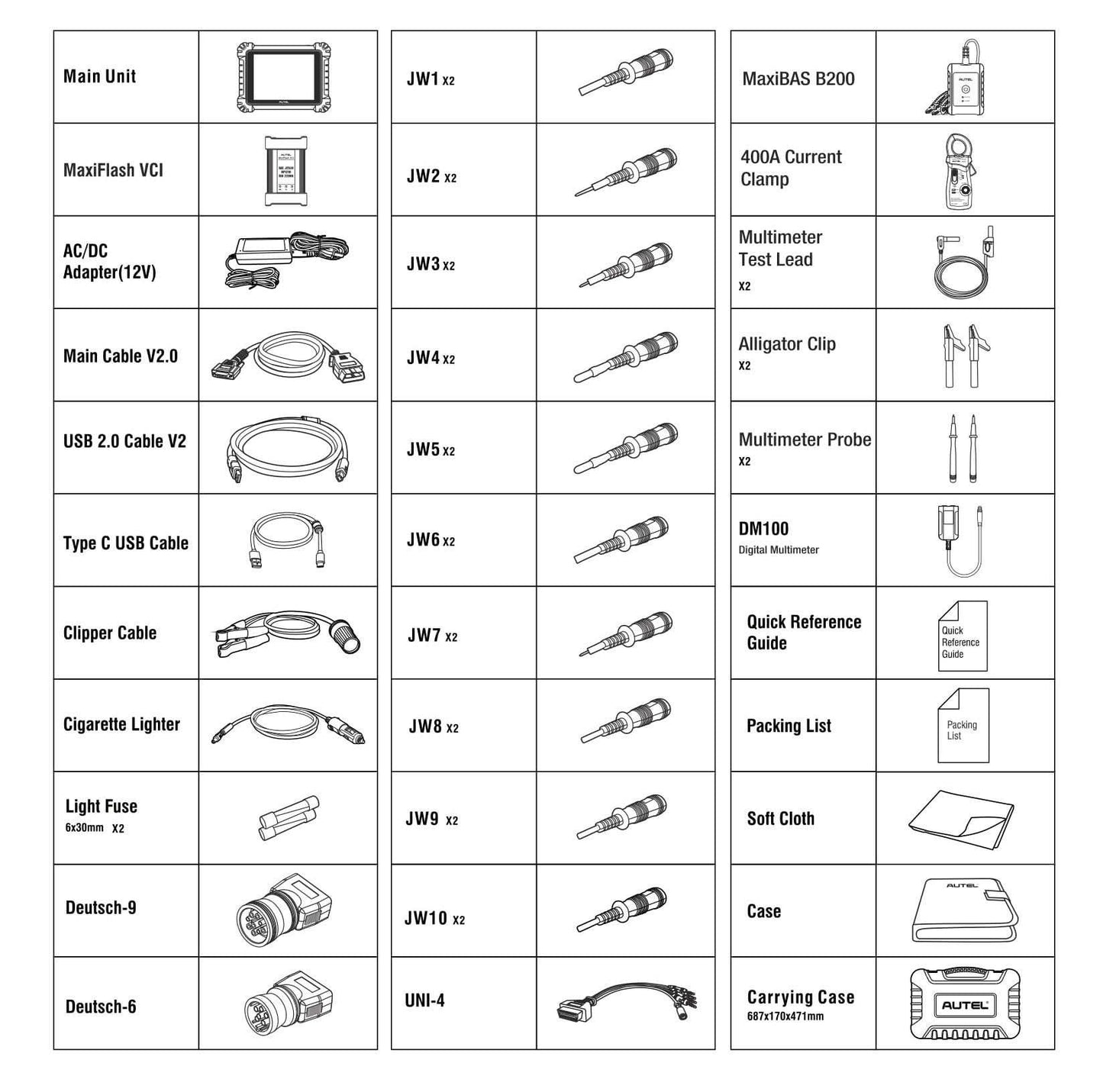

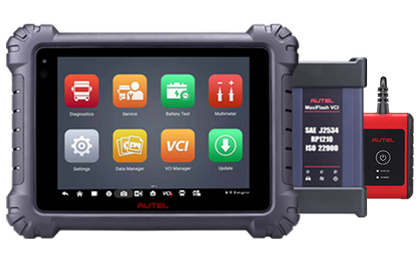

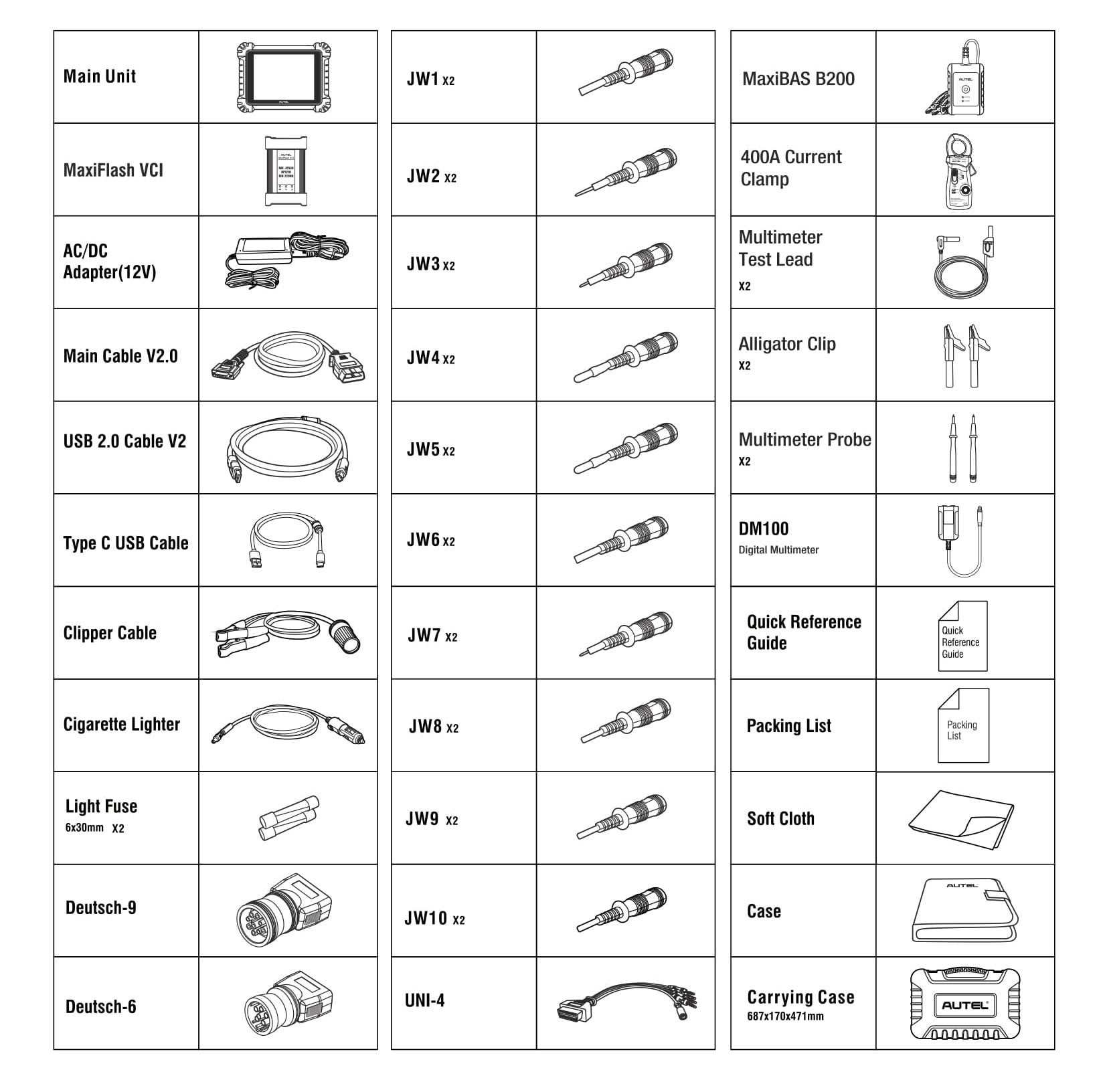

The Autel MaxiSYS MS909CV is a professional diagnostic tablet supporting over 80 models of light, medium & heavy-duty vehicles. Featuring a 9.7-inch Android Based touchscreen tablet capable of extensive diagnostic functionalities, able to read & erase codes, view & graph live data and perform active tests. Equipped with a Bluetooth Vehicle Communication Interface (VCI) & J2534 pass-through device, MaxiBAS B200 battery/starting/charging system tester, multimeter, amp clamps and alligator clamps. The MaxiSYS MS909CV features ADAS Calibration Software for Class 3-5 & Class 6-8 vehicles with dynamically calibrated systems.
Key Features
- Upgraded Octa-Core processor / Android 10.0 OS / 128GB Storage.

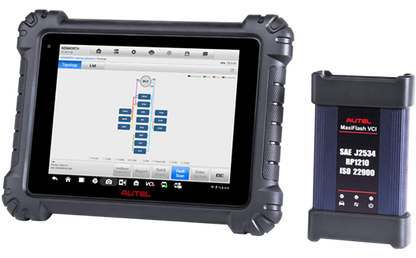

- 9.7-Inch Touchscreen / *NEW* MaxiFlash VCI

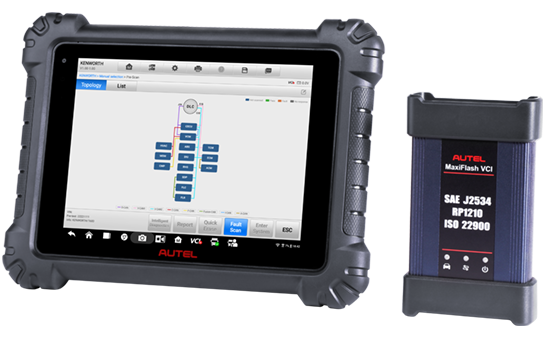

- Advanced Diagnostics with Module Topology (Select vehicles only)
- Enhanced AutoSCAN / VINScan
- ADAS App optional to add on. ADAS Calibration with new class 6-8 dynamic calibration, supporting class 3-5 complete ADAS coverage. The class 6-8 static calibration (Coming soom).
- Support heavy duty battery test & health report.
| Operating System | Android 10.0 |
| Processor | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity | Dual Wi-Fi (802.11 a/b/g/n/ac 2×2 MIMO) |
| BT V5.0 + BR/EDR | |
| GPS | |
| USB 2.0 (2 USB TYPE-A ports and a Mini USB port) | |
| HDMI 2.0 | |
| SD Card (Support up to 256GB) | |
| Camera | Rear: 16 Megapixel, Autofocus with Flashlight |
| Front: 16 Megapixel | |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone |
| Dual Speakers | |
| 3-Band 3.5 mm stereo/standard headset jac | |
| Power and Battery | 15000mAH 3.8V lithium-polymer battery |
| Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C | |
| Input Voltage | 12V/1.3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″) |
| Weight | 1.66kg (3.66 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
