Autel MaxiSYS Ultra

Autel MaxiSYS Ultra

$7,979.05 AUD
$8,600.00 AUD $7,979.05 AUD
Sale Sold out
Shipping calculated at checkout.

OBD2/CAN Bi-Directional Dual Wi-Fi Diagnostic Scanner & VCMI

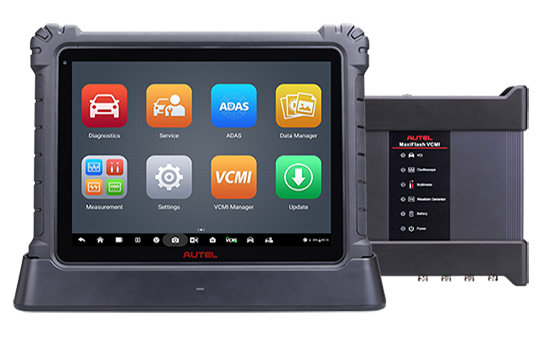

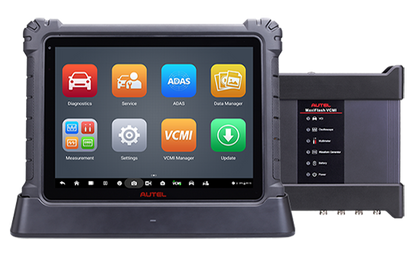

The Autel MaxiSYS Ultra is the ultimate diagnostics tool for technicians. With its powerful Octa-core processor (2.3GHz + 1.7GHz Quad) and 256GB memory, it provides a split-screen multi-application navigation for diagnostic guidance. The dynamic topology module mapping, AutoSCAN features, and Intelligent Diagnostics give step-by-step repair guidance to test components and confirm repairs. The MaxiFlash VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and CAN BUS Tester.

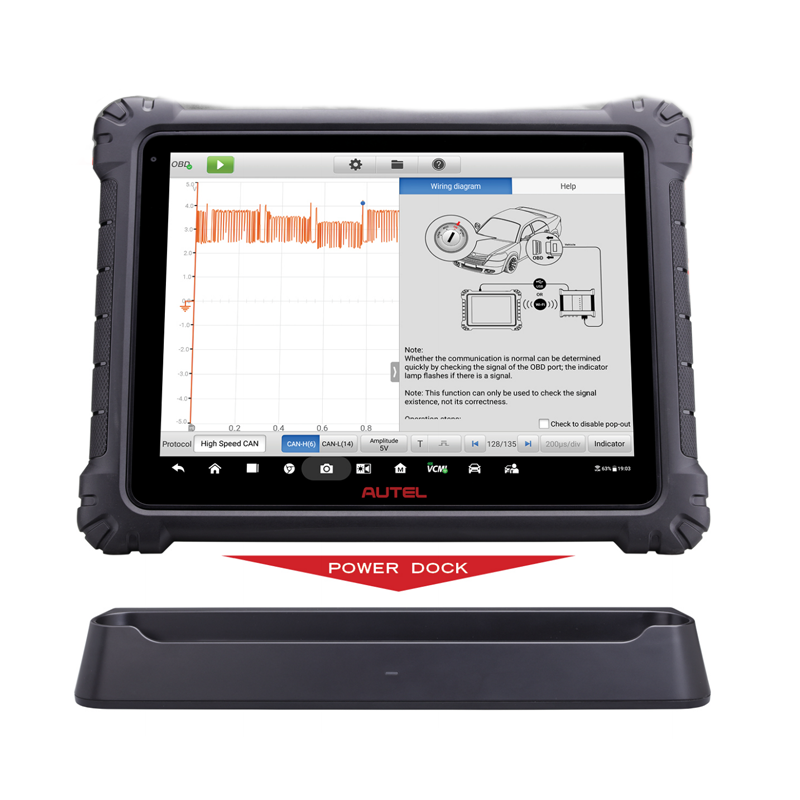

The convenient docking station ensures your tool is always charged and ready to go!

Key Features

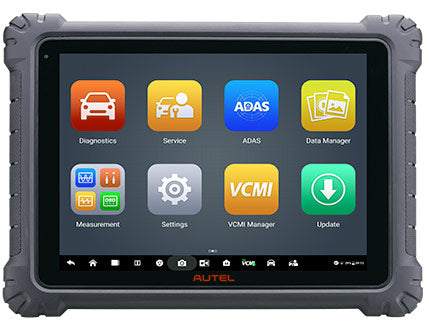

  • 12.9" Touchscreen / Android 7.0 / 2.3GHz  + 1.7GHz Octa Core Processor / 256GB Memory.
  • 18000mAh battery (8 hours continuous use).
  • 16MP rear camera / 5MP Front Camera.

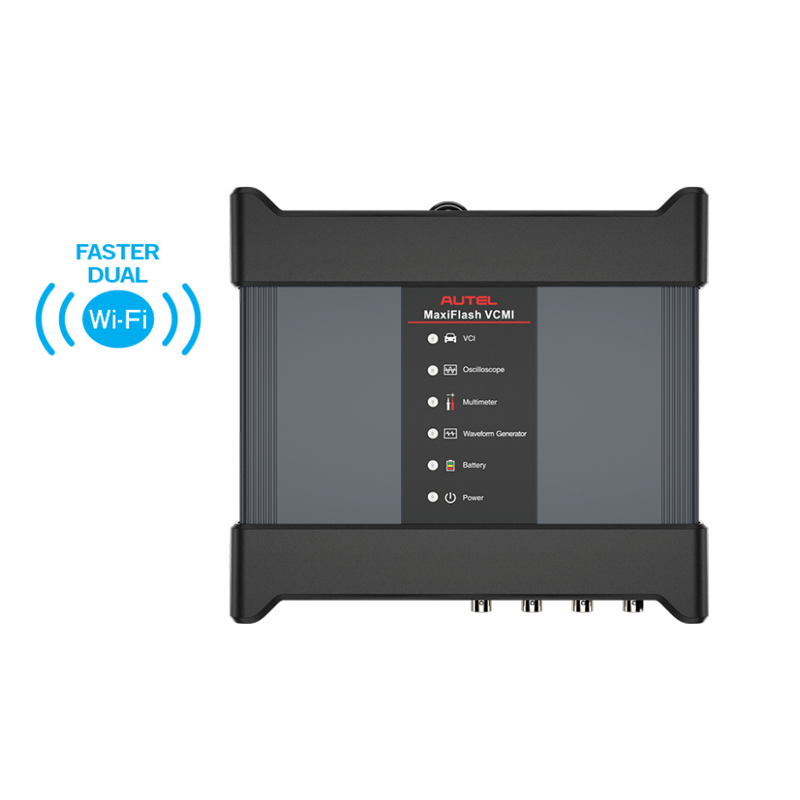

  • Professional 5-in-1 VCMI: VCI, Oscilloscope, Multimeter, Waveform generator, CAN BUS Check.
  • New VCI Protocols: Mega CAN, DoIP/CAN FD, D-PDU.
  • Oscilloscope Preset Guided and Component testing / waveform library.
  •  Split-screen multi-application navigation function.
  • Dynamic Topology Module Mapping (supported vehicles only).
  • DTC Troubleshooting and Video Repair Tips for related cases.
  • Repair Assist: Guided procedures with DTC analysis and Fault code solutions.
  • DTC related technical service bulletins (select vehicles only).
  • SecureVIN: Barcode/Text recognition / License plate reader.
  • Secure gateway access: Authorised FCA SGM Access with AutoAuth Account.
  • Professional Diagnostic Reports: PreSCAN and PostSCAN.

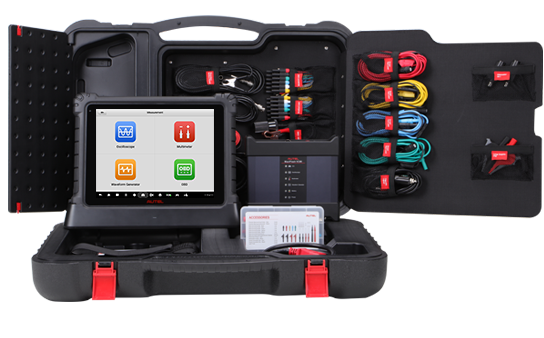

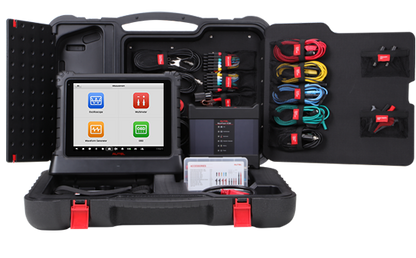

Kit Includes:

  • Primary Unit.
  • Docking Station & Cables.
  • Scope connectors.
  • Robust Carry Case.
  • 1 YEAR WARRANTY & SOFTWARE SUBSCRIPTION.



Specifications

Operating System Android 7.0
Processor Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 256GB On-board Memory
Display 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity
  • WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO)
  • BT v.2.1 + EDR
  • GPS
  • USB 2.0 (Two USB HOST Type A, one USB mini device)
  • HDMI 2.0
  • SD Card (Support up to 256GB)
Camera
  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 5 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery
  • 18000mAh 3.8 V lithium-polymer battery
  • Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD) 366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″)
Weight 2.18kg (4.81 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
