Autel MaxiTPMS ITS600
Autel MaxiTPMS ITS600
Couldn't load pickup availability
Introducing the MaxiTPMS ITS600, a wireless, android-based touchscreen tablet offering comprehensive TPMS diagnostics and service functionality. Featuring a 5.5-inch colour display and a Bluetooth Vehicle Communication Interface (VCI). Compatible with US, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS Status screen, VINScan enabling rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles. The ITS600 enables technicians to activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tyre expiration notice and access to recall lookup. The ITS600 is compatible with TBE200/TBE100 Tyre tread and brake disc wear analysis tool (sold separately). With the extensive range of tyre-related features and functions, the Autel MaxiTPMS ITS600 is the obvious choice to complete TPMS and tyre health work.
Key Features
- Activate, read & relearn all known sensors
- Enhanced, at-a-glance diagnostics status screen
- Fast OBDII relearn for most vehicles
- Program MX-Sensors to replace 99% of OE sensors
- 2 MX-Sensor program modes; batch program up to 20 MX-Sensors
- Copy by OBD sensor programming for rapid service
- Includes wireless Bluetooth VCI
- Tyre pressure placard value reset
- Read/Clear TPMS system codes & view live data
- Free Wi-Fi Software updates for the life of the tool.
Rapid Vehicle Identification Technology
- Rapid VIN acquisition via optical VINScan
- QR Code Scan / Barcode Scan / Plate Scan / AutoVIN Detect / Manual input
- Identify MMY & sensor OE part number via VIN decoding
Diagnostics & Service
- Oil light reset
- Electronic brake service
- Battery registration
- Steering angle sensor reset
- Included service function updates for the life of the tool
- All systems diagnostics and maintenance services software available with Pro Upgrade Purchase
Expanded Tyre Service
- DOT
- Quick & Easy Tyre DOT Number Scan
- Tyre expiration notice
- Tyre recall lookup
- Tread Depth & Brake Disc Wear
- Precise laser measurement of tread depth & brake disk wear with purchase of Autel TBE100/TBE200

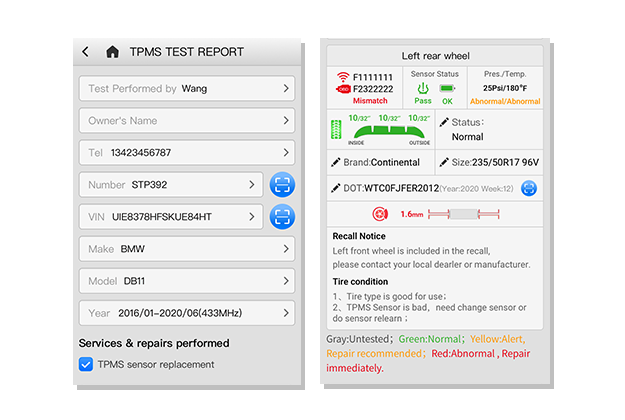

- Comprehensive Test Report: TPMS health, tread depth & brake disc wear, characteristics & repair tips
Autel MaxiTPMS ITS600 Specifications
| Recommended Use | Indoor |
| Operating System | Android™ 9.0 |
| Processor | Quad-core processor (1.5 GHz) |
| Memory | 2GB RAM DDR4 & 64GB ROM |
| Display | 5.5-inch LCD capacitive touchscreen with 1280x720 resolution |
| Connectivity | • Wi-Fi • USB 2.0, Type C • BT |
| Sensors | Light sensor for brightness auto adjust |
| Audio input/output | Input: N/A Output: Beep |
| Power and Battery | • 3.8 V/5000 mAh lithium-polymer battery • Charges via 5 V AC/DC power supply |
| Battery Charging Input | 5 V/2 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V |
| Operating Temp. | -10 to 45°C(14 to 113°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”) |
| Net Weight | 368 g (0.8 lb.) |
| Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66 |
