Autel MaxiTPMS TBE200

Autel MaxiTPMS TBE200

$890.00 AUD
$890.00 AUD
Sale Sold out
Shipping calculated at checkout.

Tyre Tread Depth & Brake Disc Wear Examiner

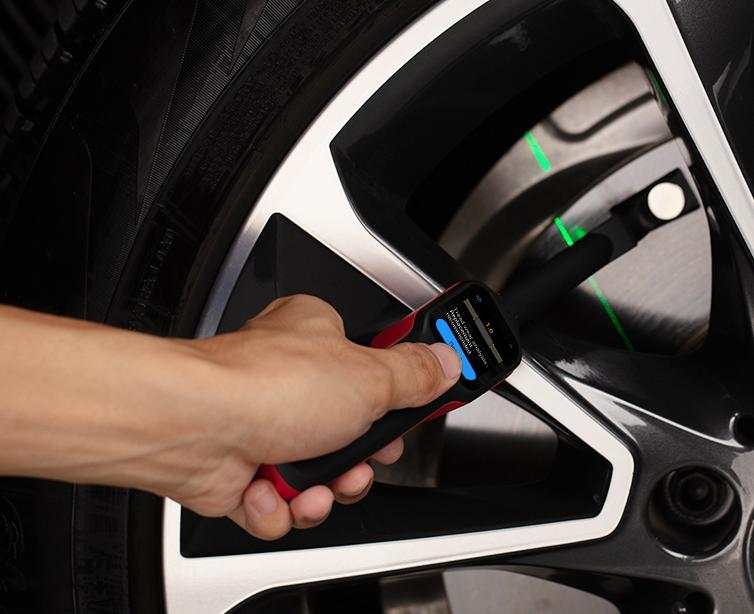

The Autel MaxiTPMS TBE200 is a laser-enabled tire depth and brake wear examiner that offers fast and precise wear measurements. With a 1.65" AMOLED touchscreen, it provides real-time data curves for accurate analysis. Dual cameras allow for tire damage/wear documentation and Tire Identification Number (TIN) scanning. Equipped with the ability to identify uneven wear patterns and provide detailed maintenance and replacement suggestions, the TBE200 is the ultimate tire inspection service tool. Use it alone or with the ITS600 for detailed TPMS reports and maintenance suggestions.



Autel MaxiTPMS TBE200 Specifications

Recommended Use Indoor
Processor 4x ARM Cortex-A35 (1.5 GHz)
Memory 1GB RAM LPDDR3 & 4GB ROM
Display 1.65-inch AMOLED capacitive touchscreen with 348×442 resolution
Connectivity • Wi-Fi
• USB 2.0, Type C
Camera CMOS WXGA, 1 megapixel & 8 megapixel, 30fps
Audio output Output: Beep
Power and Battery • 3.7 V/3000 mAh 18650 lithium-ion battery
• Charges via 5 V AC/DC power supply
Tested Battery Life Around 8 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 300 mA (AMOLED on with default brightness) @3.7 V
Operating Temp. -10 to 45°C(14 to 113°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D) 283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”)
Net Weight 188 g (0.41 lb.)
View full details

TBE200

Laser Measurement

  • Tyre tread depth & brake disc wear check in one tool without the need to remove the wheel for measurement.
  • Laser measurement with 0.1mm accuracy.
  • Full tread measurement.
  • Quick check both tread depth & brake disc.

TBE200

Real-Time Analysis

  • Real-time measurement data on touchscreen.
  • Measurement data display curve.
  • Uneven wear analysis.
  • Test detail for single tyre tread / brake disc.
  • Detailed replacement & maintenance suggestions.
  • Scan DOT, tyre expiration notice & tyre recall lookup.
  • Photograph tyre wear & damage.

TBE200

Comprehensive Report

  • TPMS Health.
  • Tyre tread depth & and brake disc wear characteristics & repair tips.

NOTE: ITS600 required for comprehensive test report.
