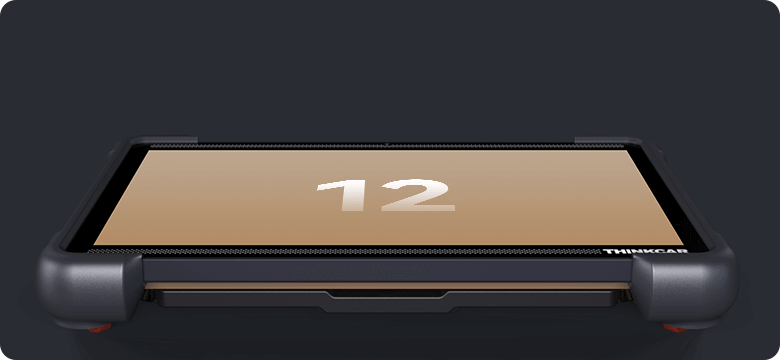

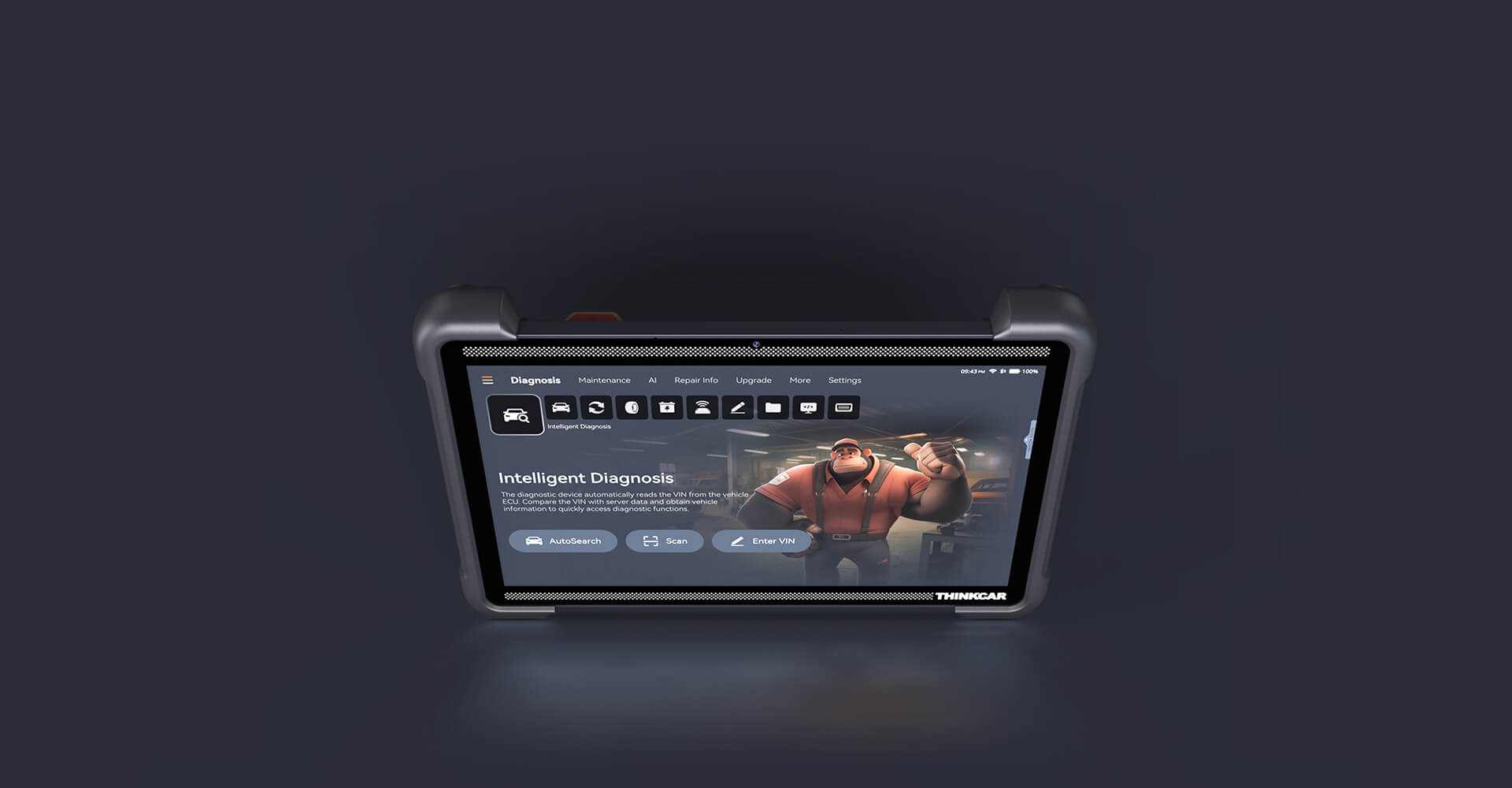

12-Inch AI-Enabled Diagnostic Scan Tool | ThinkTOOL Expert 394

THINKLINK PRO VCI: Dynamic. Powerful.

Equipped with a 6.54-inch 720*1600 resolution high-brightness touch screen and 1GB RAM & 8GB ROM.

Supports mainstream diagnostic protocols such as CAN 2.0/CAN FD/DOIP/J2534, covering passenger cars, commercial vehicles* and new energy vehicles.

THINKLINK PRO High-Speed Communication

Supports dual-band WiFi and Gigabit Ethernet communications, greatly improving the stability and efficiency of local and remote diagnosis.

THINKLINK PRO VCI Ultra-Fast Connection

After the VCI is connected to the vehicle, it communicates with the host autonomously and enters the diagnosis.

THINKLINK PRO Hardware Platform

Equipped with dual-core 1.3GHz Renesas automotive-grade processor, 1GB + 8GB RAM, and high-real-time LINUX system, diagnosis is safer, more stable, and faster.

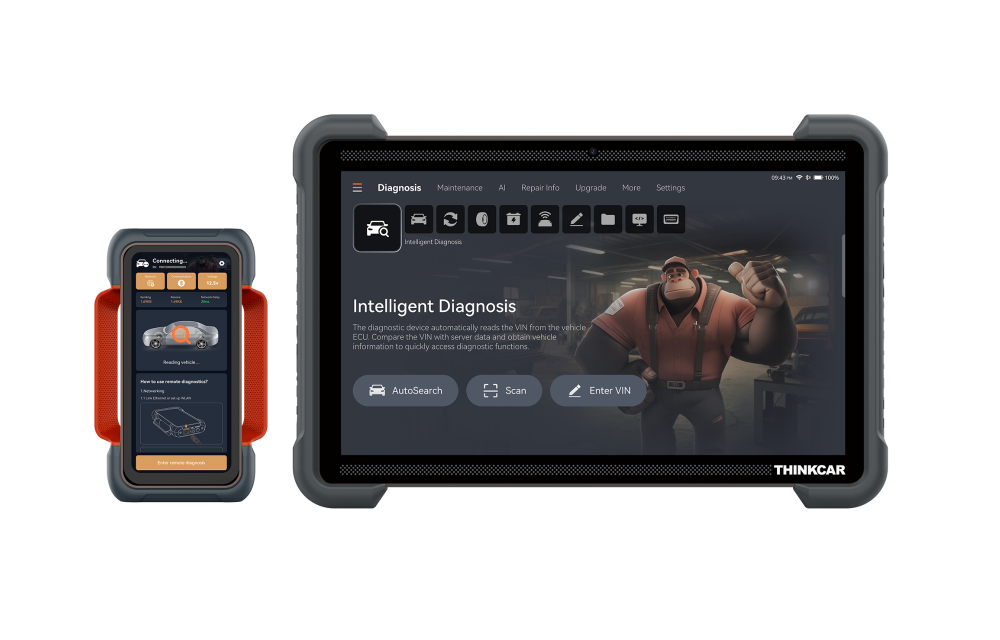

ThinkCAR Expert 394 Diagnostic Scan Tool

EV Diagnostic

EV Battery pack diagnostic

For new energy vehicle battery packs, battery modules for professional diagnostic testing, and provide multi-mode diagnostics including:

• OBD interface diagnostics
• Fast charging port diagnostics
• Battery pack low voltage interface diagnostics

It can also analyse the voltage, temperature, differential pressure and other important data of the battery cells in real time to help users to accurately locate the battery faults and provide guidelines for battery diagnosis, testing and maintenance.

THINKTOOL 399 & 394 comes standard with battery pack diagnostic function, 6 new energy maintenance software, new energy EV models with the highest software.

Hardware non-standard connectors are not standard, please purchase separately if needed.

THINKTOOL Expert 394 Programming, Coding & AI service

Split Screen

THINKTOOL 399 & 394 support split-screen for multi-application use.

Through the [Quick Launch] bookmark at the top right of the interface, you can open the list of apps that support split-screen.

Select the app to open the second screen on the right side in the form of split-screen.

Drag the junction of the first and the second screen left and right to adjust the ratio of the screen, and it supports the three kinds of display ratios, namely, [1:2], [1:1], [2:1].

ThinkTOOL Expert 394 Diagnostic Scan

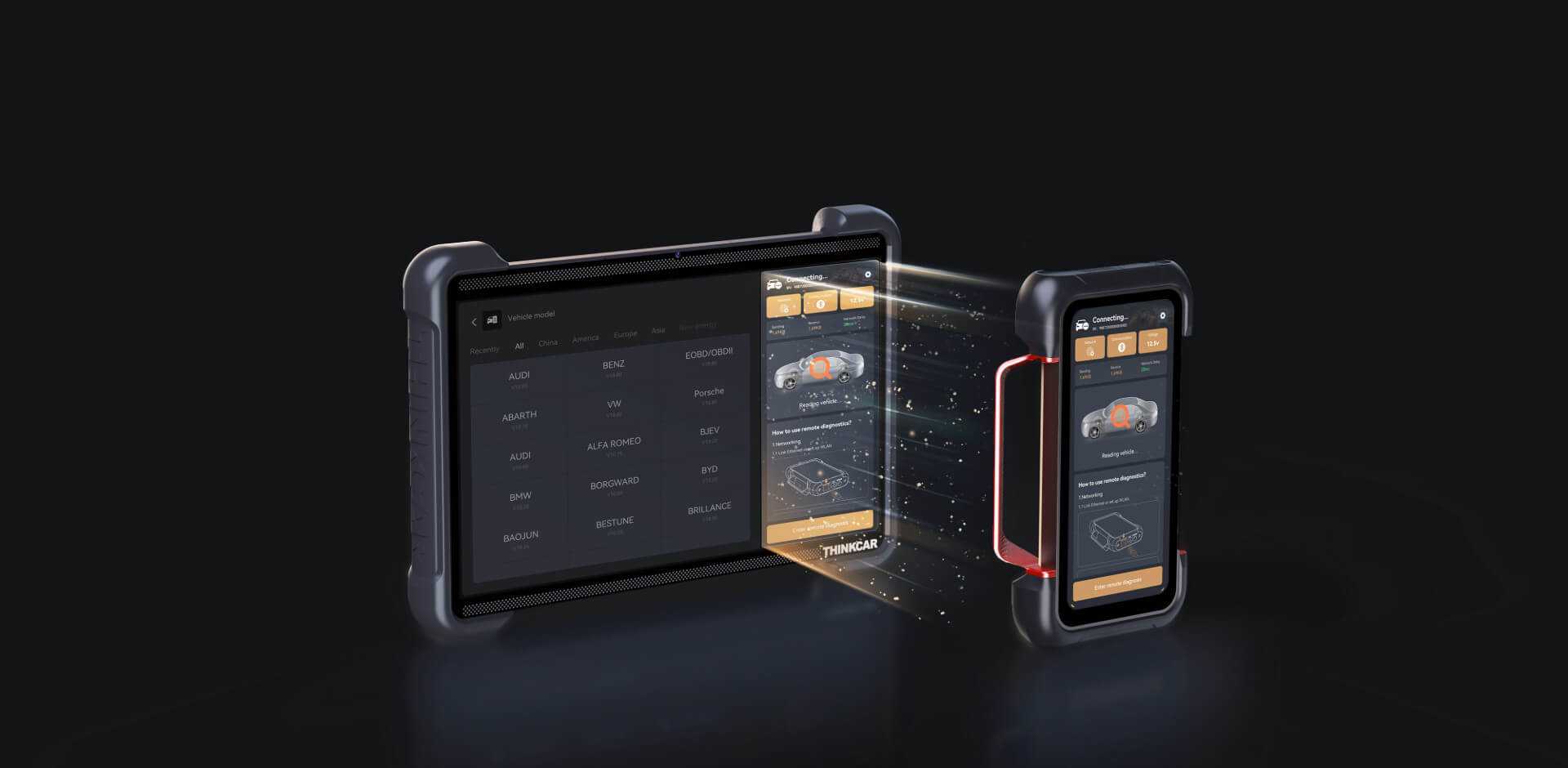

Real Time Display

VCI Real time display on device

Use the [Quick Launch] bookmark at the top right of the interface to hit the application list.

Select the [VCI] real time display function to view the key data of the connector interface in a split screen.

Theme Switching

THINKTOOL 399 & 394 & 391 supports the function of switching the theme of the device to [Indoor Mode] and [Outdoor Mode].

Supports the operator to adjust the interface theme color according to the lighting conditions of different scene.

Operate by clicking the shortcut button through the drop-down pop-up window of the device.

Switch the theme through [Settings] → [System Settings] → [Display Settings].

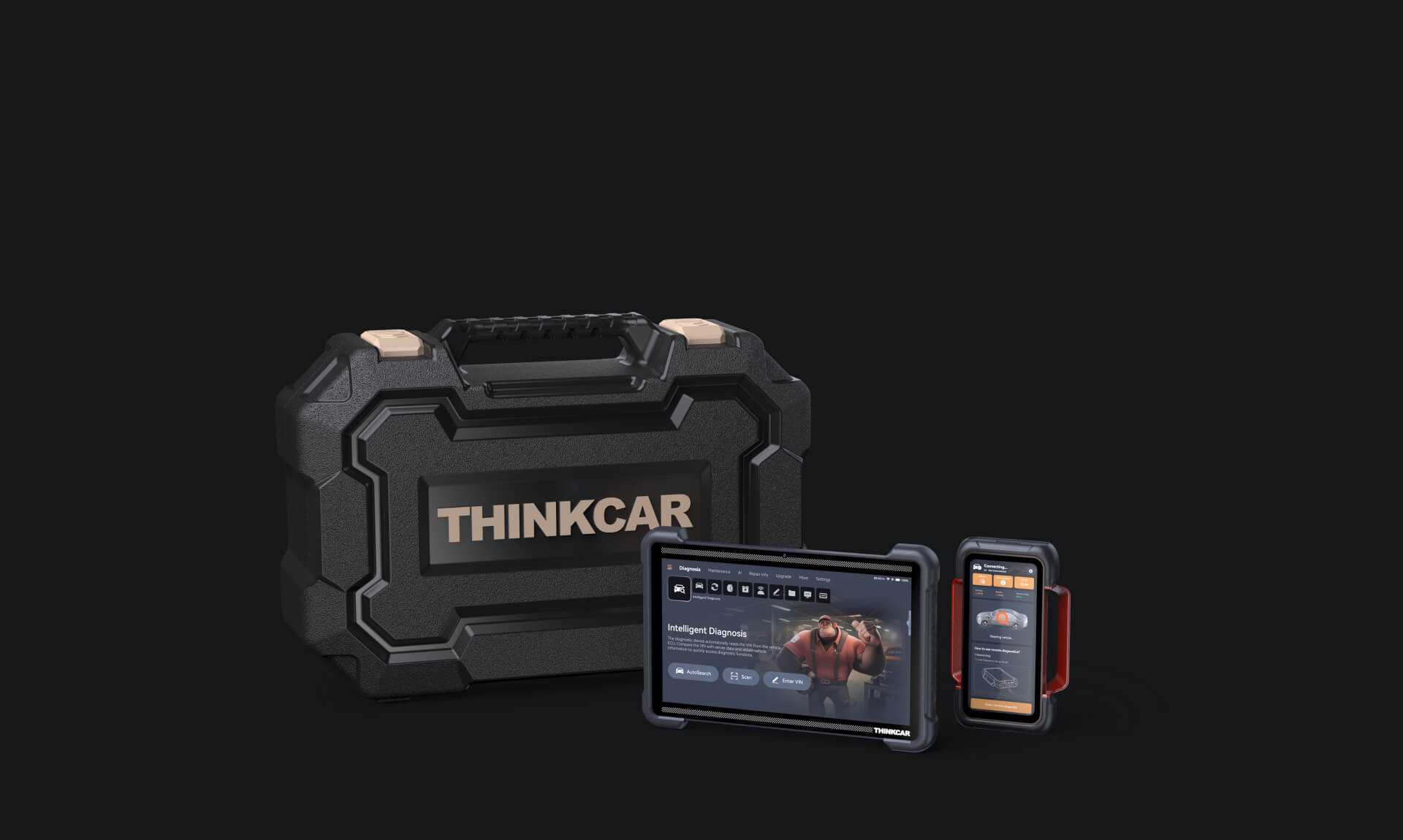

ThinkTOOL Expert 394 What's Included Unboxing

Buy With Confidence From AutoTech Workshop Solutions

Choosing the right diagnostic tool can be difficult, especially when vehicle coverage, functions, software and future workshop needs all matter.

AutoTech Workshop Solutions can help you confirm whether the THINKTOOL Expert 394 is suitable for your workshop, vehicle coverage requirements and diagnostic needs before you purchase.

Why Buy Through AutoTech?

• AutoTech is an Authorised ThinkCAR dealer: Region-specific scan tools, Australian Warranty. Beware: Unauthorised sellers may offer tools that are not optimised for the Australian region and may not offer genuine warranties.
• Australian technical support: Real support from Australian experts.
• 30-Day Money-back returns policy: Love it or return it for your money back.

Contact us for expert advice.

Frequently Asked Questions

Does the THINKTOOL Expert 394 support AI?

Yes. The original THINKCAR AI diagnostic model can understand user intent, provide customers with easier-to-use and smarter diagnostic experience in common diagnostic functions such as diagnostic navigation, intelligent reporting, FQA, DTC, etc., and improve work efficiency in diagnostic scenarios.

Does the THINKTOOL Expert 394 support CAN FD, DOIP and J2534?

Yes. The THINKLINK PRO supports mainstream diagnostic protocols such as CAN 2.0/CAN FD/DOIP/J2534.

Does the THINKTOOL Expert 394 support remote diagnosis?

Yes. The ThinkTOOL Expert 394 Supports remote diagnosis.

Does the THINKTOOL Expert 394 support EV diagnostics?

Yes. THINKTOOL 399 & 394 comes standard with battery pack diagnostic function, 6 new energy maintenance software, new energy EV models with the highest software.

Does the THINKTOOL Expert 394 support split screen?

Yes. THINKTOOL 399 & 394 support split-screen support for opening other applications via the second screen.

Does the THINKTOOL Expert 394 support VCI Display?

Yes. The key data of VCI is synchronised to the host in real time. It is convenient to check the VCI operation status during the diagnosis process.

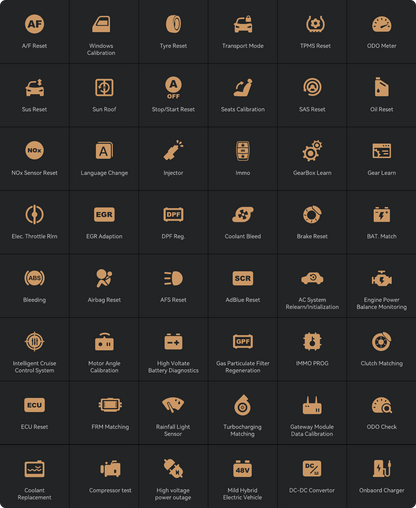

Does the THINKTOOL Expert 394 support ADAS and TPMS services?

Yes. Support the expansion of ADAS calibration services, complete TPMS services, and key programming services.*

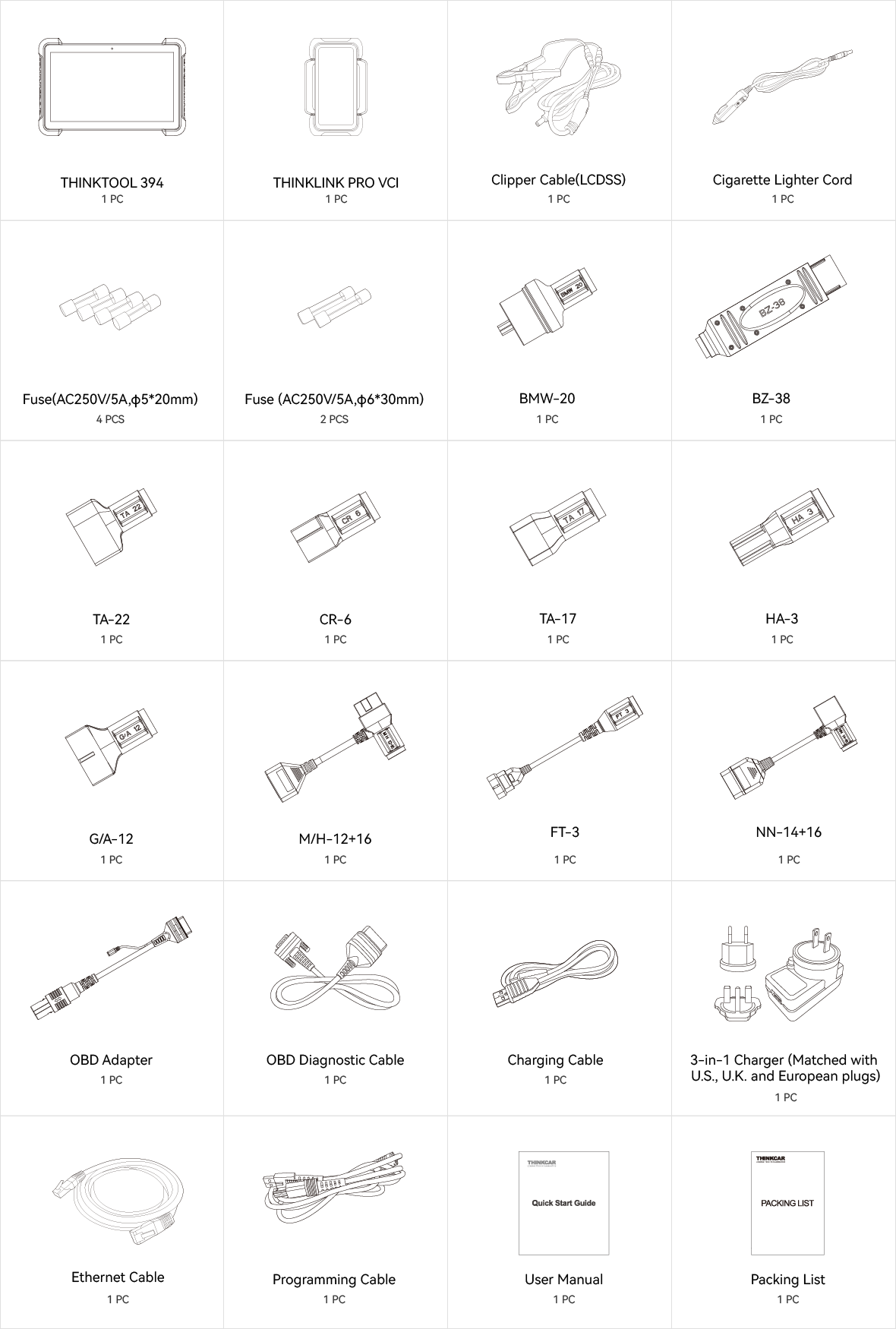

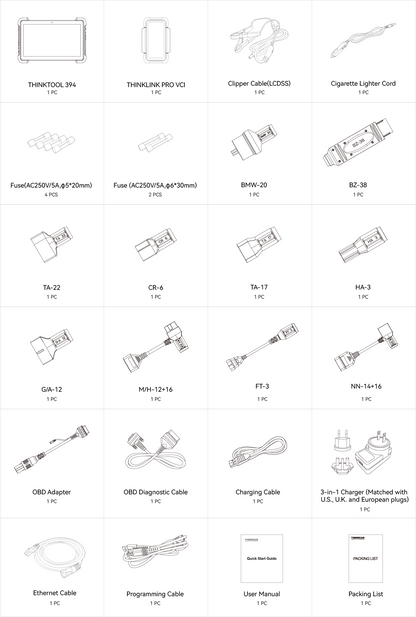

What comes in the package?

The package includes the THINKTOOL 394 host device, THINKLINK PRO VCI, charging accessories, connection cables, OBDI connectors, fuses, Quick Start Manual and Packing List.

View full specifications here.

*Add-on required, contact us for more information.
