TOPDON TC003 Infrared Thermal Imaging Camera

TOPDON TC003 Thermal Imaging Camera – High-Resolution Thermal Imaging for Professional Diagnostics

The TOPDON TC003 is a high-resolution thermal imaging camera engineered for professionals across automotive, HVAC, electrical, and agricultural industries. With a 5-inch touchscreen display, ultra-clear 256x192 IR resolution, and advanced temperature analysis features, the TC003 empowers technicians to identify faults, hot spots, and insulation issues with precision and ease.

Designed for durability and detailed diagnostics, this all-in-one device offers superior image quality, real-time waveform graphing, OTG expansion, and advanced image analysis tools to elevate your inspections and maintenance work.



TOPDON TC003 Thermal Imaging Camera Key Features

Ultra-High Resolution Thermal Imaging

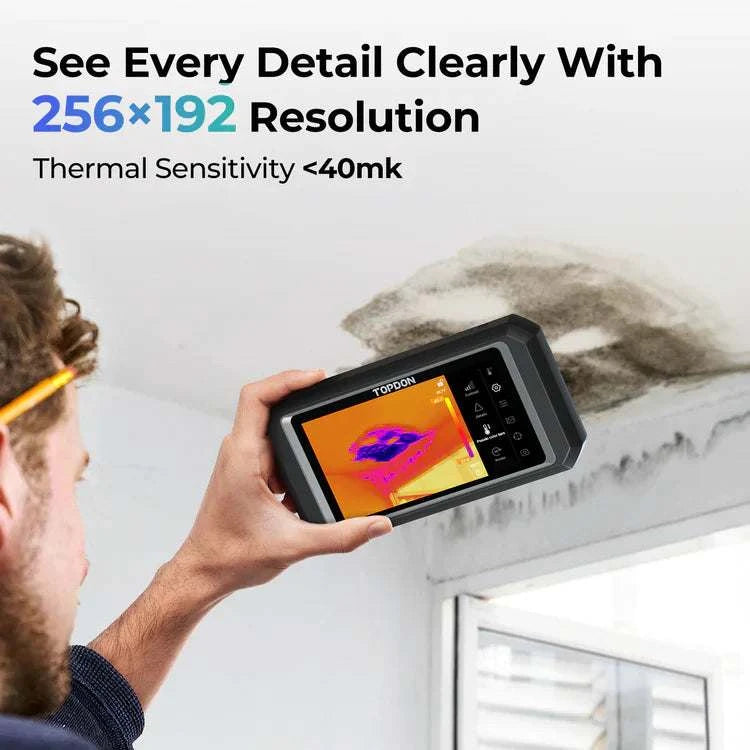

The TC003 delivers detailed infrared visuals with a 256x192 resolution and 40mK sensitivity, allowing you to detect even the smallest temperature variations. It’s perfect for inspecting circuit boards, engines, HVAC systems, and electrical panels where surface temperatures can be hard to differentiate.

Accurate Temperature Detection

Measure temperatures from -20°C to 550°C (-4°F to 1022°F) with a high degree of accuracy — ±2°C or 2% max — with resolution down to 0.1°C. The TC003 includes automatic temperature correction for ambient conditions, distance, and emissivity, ensuring consistent accuracy across a range of surfaces and environments.

Four Intelligent Temperature Modes

Choose from four reading formats:

• Dot format
• Line (with high/low detection)
• Plane (area-based high/low)
• Full View (center, high, and low spots)

You can monitor up to three areas at once, with real-time feedback shown via a color-coded bar to quickly identify hot or cold spots.

Four Imaging Modes + 11 Color Palettes

View scenes using visible light, thermal imaging, fusion (thermal + visible), or outline fusion for more complex surfaces. Customize your display with 11 color palettes to suit your environment and preference.

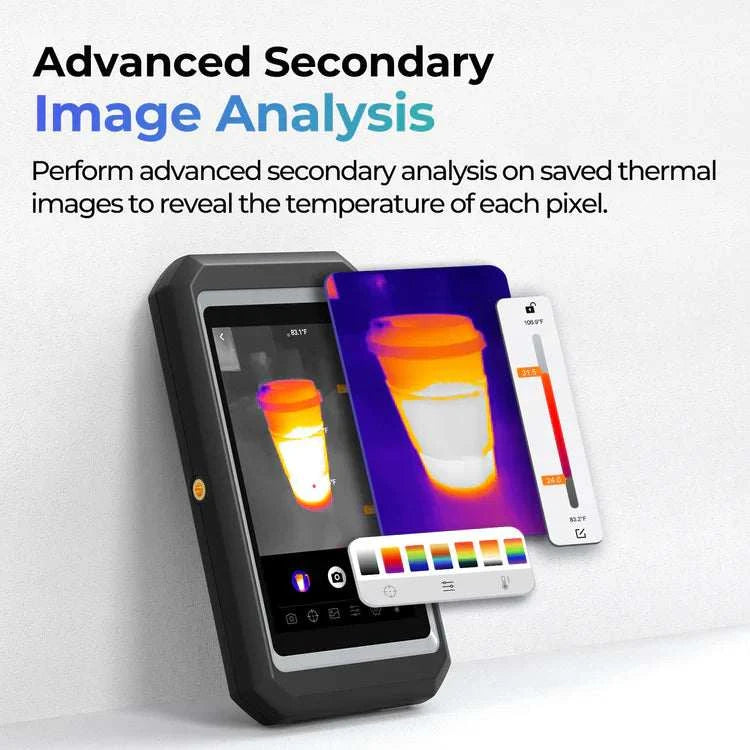

Secondary Thermal Analysis

Go beyond real-time analysis—review stored images to check exact temperatures of any pixel using dot, line, and area-based dimensions. Adjust color gradients and temperature ranges to highlight critical areas and gain deep insights post-inspection.

Waveform Graphing & Data Logging

Capture continuous thermal data over time and generate waveform graphs that display high, low, and average temperatures—ideal for monitoring device performance, detecting irregular heating patterns, or ensuring repair success.

Rugged & Professional Build

Built to handle tough environments:

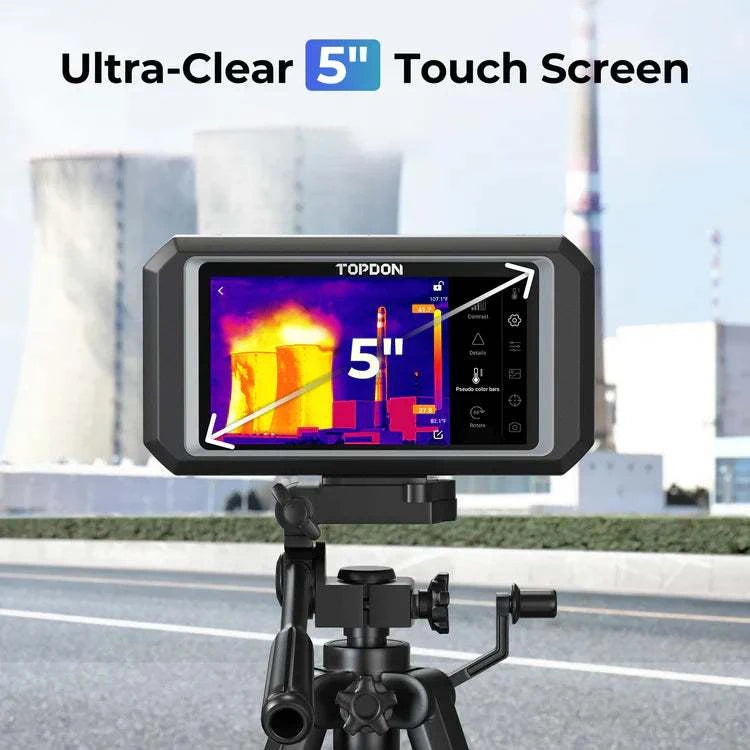

• 5-inch touchscreen with 800x480 resolution
• IP55 dust and water resistance
• Drop-tested to 2 meters
• Built-in LED flashlight, low-light night vision lens, and speaker
• Durable 5000mAh battery for extended use
• Supports screen recording and screenshots for documentation

OTG Expansion & Windows Compatibility

Use the TC003 with external devices like endoscopes and USB drives via OTG support, or connect it to your Windows laptop using TCView software for expanded viewing and analysis. The desktop app includes 99 customizable color palettes.

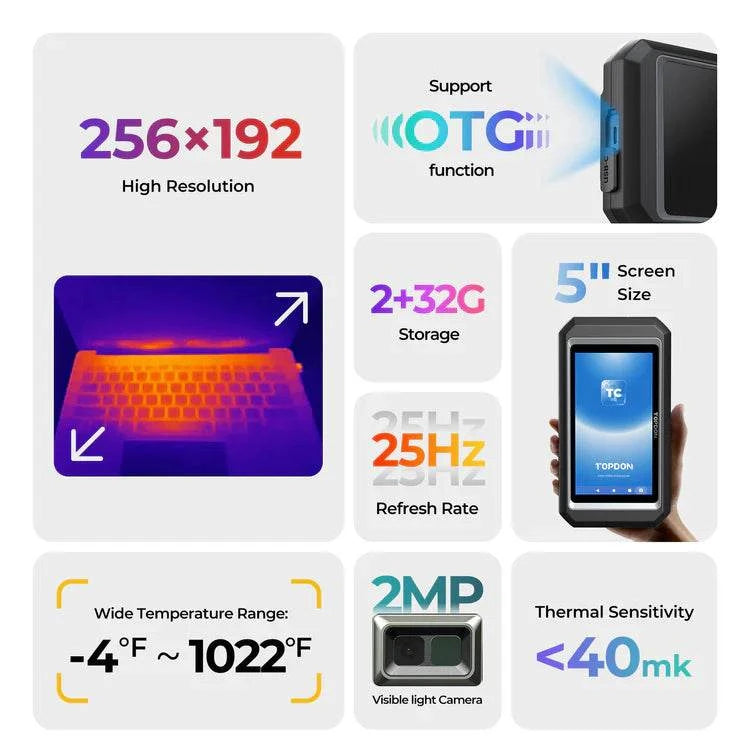

Key Specifications

• Resolution: 256x192 IR, 2MP visible light
• Display: 5" touch screen (800x480)
• Heat Sensitivity: 40mK
• Temp Range: -20°C to 550°C
• Battery: 5000mAh
• Weight: 900g

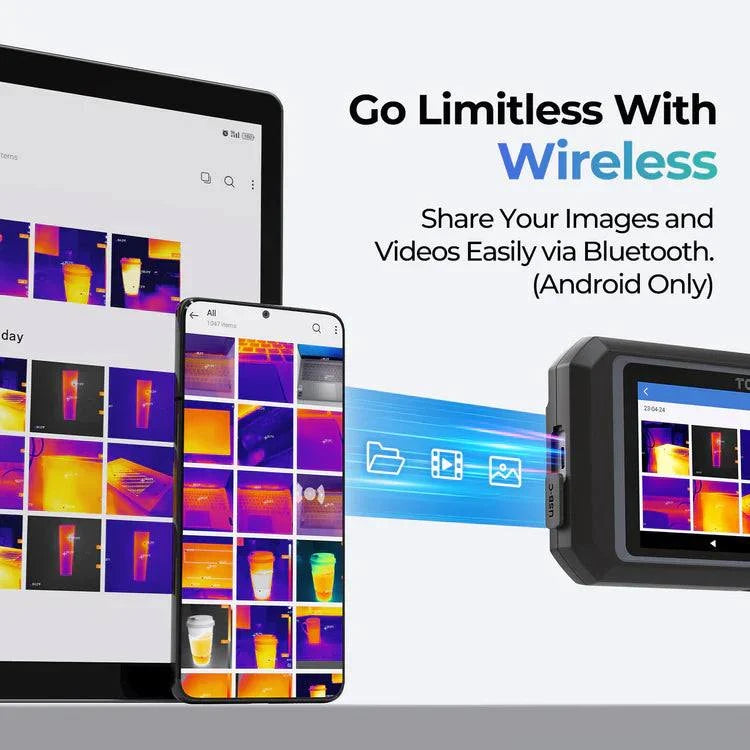

• Connectivity: Wi-Fi, Bluetooth, USB
• OS: Android 11.0
• Languages: Supports 13 global languages

What’s in the Box

• TC003 Thermal Camera
• Power Adapter
• USB Cable (Type-A to Type-C)
• User Manual
• Cleaning Cloth
• Carrying Case
• Retail Package Box
