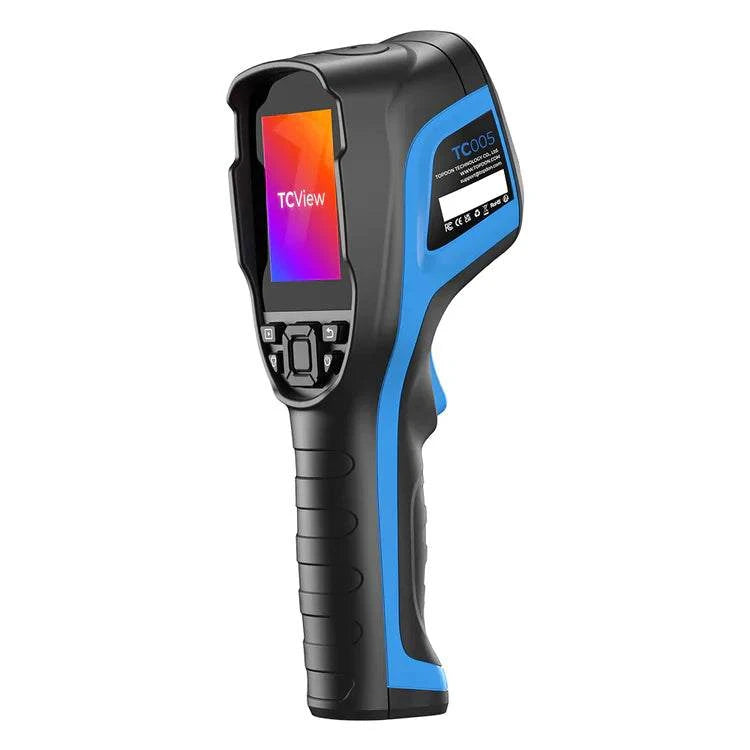

TOPDON TC005 Infrared Thermal Imaging Camera

TOPDON TC005 Handheld Thermal Camera – High-Resolution Imaging with 12-Hour Runtime

The TOPDON TC005 is a professional-grade handheld thermal imaging camera designed for fast, accurate diagnostics across a wide range of applications. With a powerful infrared resolution of 256x192 pixels, a temperature range from -20°C to 550°C (-4°F to 1022°F), and a 12-hour battery life, the TC005 is the ideal solution for electricians, HVAC technicians, automotive professionals, and inspectors who demand precision and reliability.

Whether you're detecting heat loss, diagnosing electrical issues, or identifying engine faults, the TC005 delivers sharp, detailed thermal images and unmatched convenience.

High-Resolution Thermal Imaging

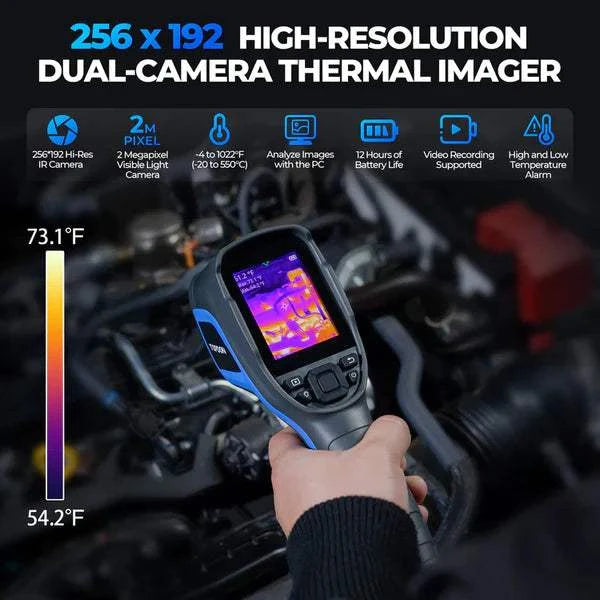

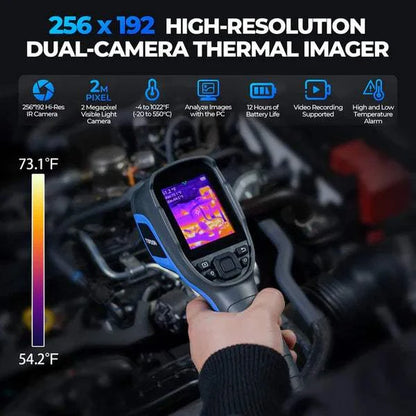

Say goodbye to blurry images. The TC005’s 256x192 pixel infrared sensor captures fine details, making it easier to detect temperature anomalies quickly and accurately. The high sensitivity of 40mK (0.05°C) allows the camera to differentiate even the slightest temperature changes.

Wide Temperature Range & Accuracy

Measure extreme temperatures with confidence. The TC005 covers a range from -20°C to 550°C (-4°F to +1022°F) with a margin of error less than 2% and resolution down to 0.1°C. It's built for accurate diagnostics in industrial, mechanical, and environmental settings.

Multiple Measurement Modes

Quickly identify temperature variations with three measurement modes:

• Center Spot Detection
• Hot Spot Detection
• Cold Spot Detection

These auto-detection features visually highlight areas of concern for faster analysis and reporting.

Wide Field of View

A 56° field of view allows users to capture more in a single frame without adjusting the focal length—ideal for inspecting large surfaces or crowded components.

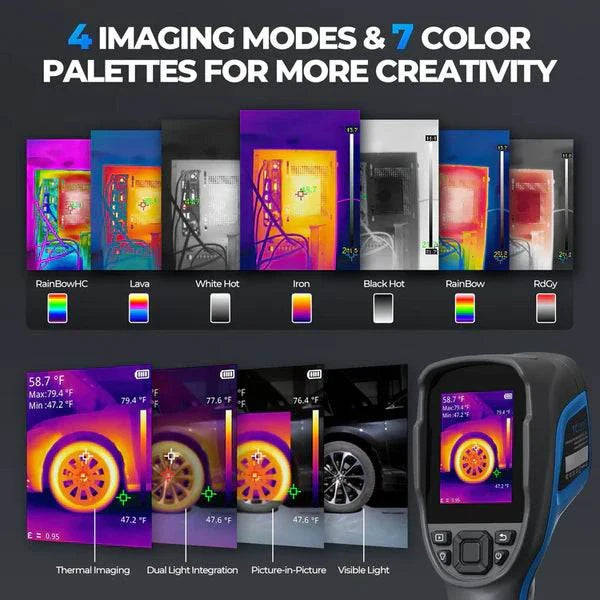

Four Imaging Modes

Adapt your view to your environment with four flexible imaging modes:

• Thermal Imaging Mode
• Visible Light Mode
• Dual Light Mode
• Picture-in-Picture Mode

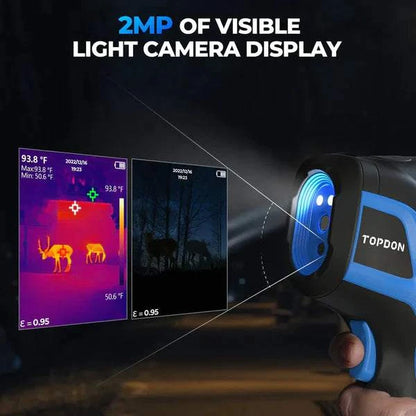

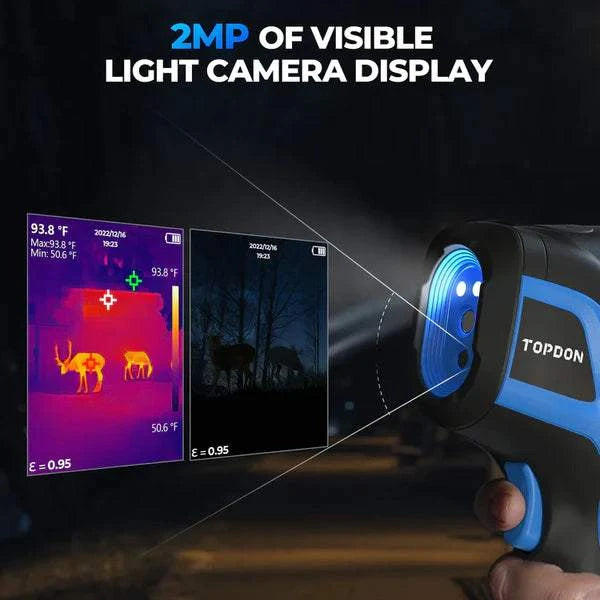

Overlay visible and thermal images with the built-in 2MP camera for clearer diagnostics.

PC Connectivity & Image Analysis

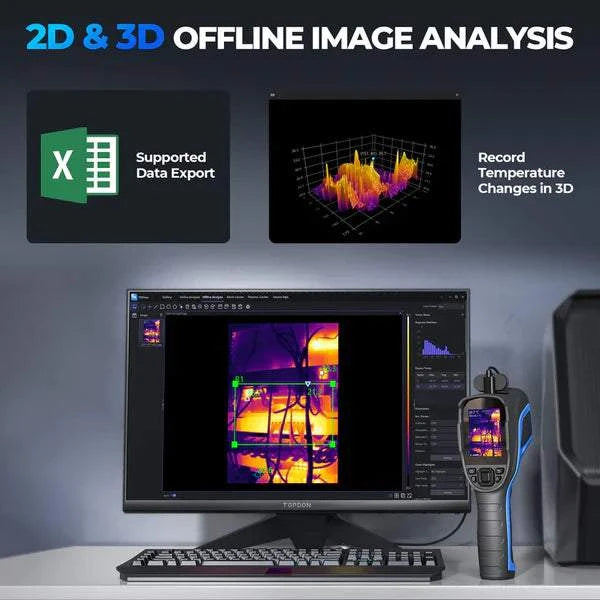

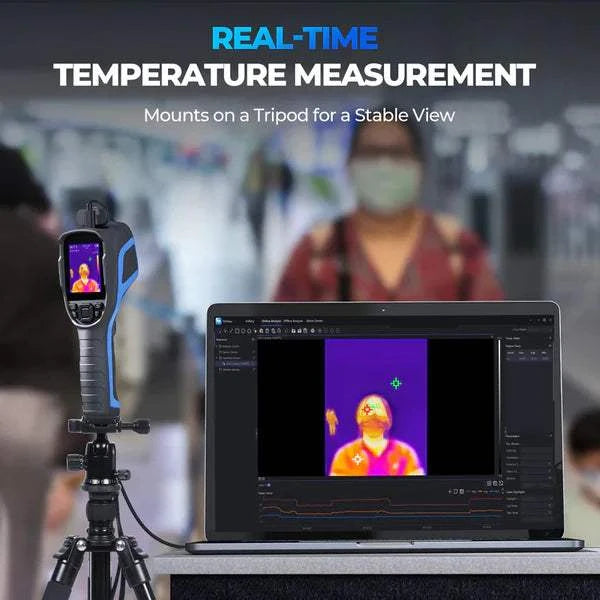

Upload images to your PC for deeper analysis using the included software. The TC005 also supports live screen projection to your PC for real-time diagnostics and collaborative reviews.

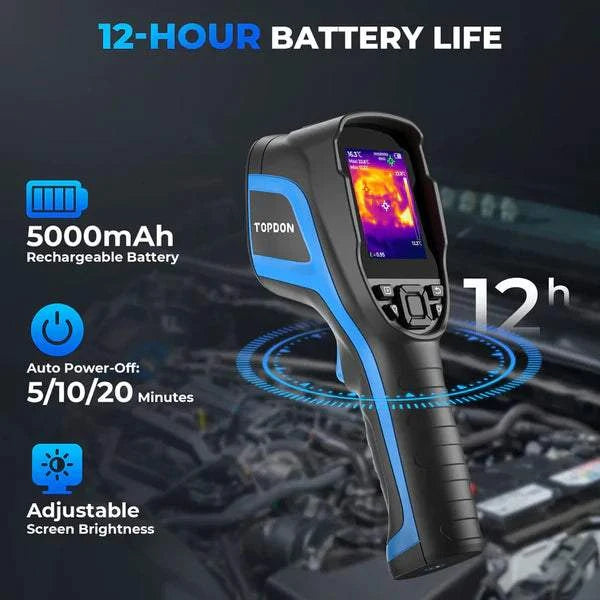

Long-Lasting Battery Life

The integrated battery provides up to 12 hours of continuous use on a single charge, perfect for long workdays or on-site inspections.

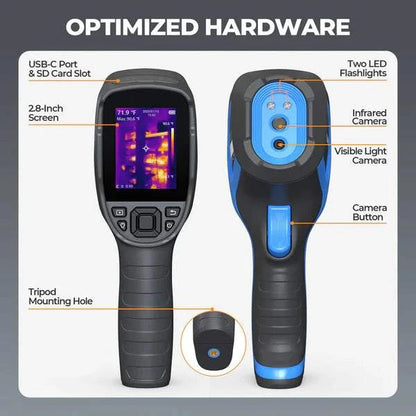

Rugged, Reliable, and Built to Last

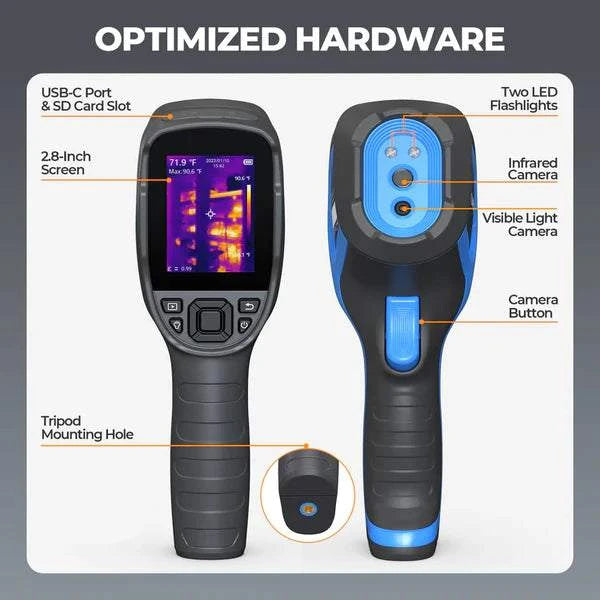

With IP54 water and dust resistance and 2-meter drop protection, the TC005 is built for challenging job site environments. A built-in LED light allows you to work in dark or confined spaces without needing an external torch.

Compact and Lightweight

• Size: 9.4 x 2.76 x 3.54 inches
• Weight: 520g
• 2.8-inch color display
• 20Hz image frequency for smooth visuals
• Spectral range: 8 – 14μm

What's in the Box

• TC005 Thermal Camera
• 16GB Memory Card
• USB Data Cable
• 5V3A Power Adapter
• Calibration Certificate
• Product Certificate
• User Manual
• Storage Bag
• Package Box

Buy with Confidence

• Free Shipping Australia-wide
• One-Year Warranty
• 30-Day Money-Back Guarantee
• Expert After-Sales Support
