TOPDON UltraDiag Diagnostic Scan Tool and Key Programmer

TOPDON UltraDiag: Advanced Diagnostic Tool with Key Programming Capabilities

The TOPDON UltraDiag is a versatile and feature-packed diagnostic tool designed for automotive professionals, repair shops, and DIY enthusiasts. With robust diagnostic capabilities, 8 essential reset functions, and advanced key programming features, the UltraDiag opens new opportunities for streamlined repairs and added revenue streams.

This cutting-edge scanner delivers full-system diagnostics for over 60 car brands, including bi-directional controls, a repair data library, and wireless diagnostics. Equipped with enhanced hardware and a user-friendly interface, the UltraDiag is built to perform efficiently and effectively, helping you tackle any job with confidence.

---

Key Features

1. Full-System Diagnostics for 60+ Car Brands

Gain comprehensive insights into your vehicle's health with complete system scans for over 60 makes. The UltraDiag accesses all major systems, including:

• Engine, transmission, ABS, and airbags.
• TPMS, steering, immobilizer, air conditioning, and more.
  No guesswork—get detailed reports for a complete understanding of any faults.

2. Bidirectional Control for Component Testing

The UltraDiag enables bi-directional control, allowing users to interact with vehicle subsystems and actuators. Perform active tests to identify faulty components with precision. Supported functions include:

• Controlling fuel injectors, coolant pumps, windshield wipers, and more.
• Confirming repairs in real-time for accurate troubleshooting.

3. 8 Commonly Used Reset Functions

Effortlessly perform essential maintenance tasks with the 8 reset functions:

• Oil Reset
• Throttle Adaptation
• EPB Reset
• Steering Angle Reset (SAS)
• DPF Regeneration
• ABS Bleeding
• BMS Reset
• Airbag Reset

4. Advanced Key Programming

Expand your services with the UltraDiag’s key programming features, compatible with 40+ vehicle brands. Functions include:

• PIN Reading
• Key Learning
• Remote Control Learning
• All Keys Lost
• Key Deletion
  This capability makes the UltraDiag a powerful tool for locksmithing jobs, allowing you to generate new revenue streams.

5. Repair Data Library and Fault Code Repair Guide

Simplify diagnostics with the Repair Data Library, providing clear definitions for OBD2 fault codes and actionable repair guidance. Save time and deliver accurate solutions for all systems, including dashboards and HVAC systems.

6. AutoVIN & AutoScan for Streamlined Diagnostics

• AutoVIN: Automatically identifies vehicle make, model, and year.
• AutoScan: Quickly detects all vehicle systems and retrieves fault codes for efficient diagnostics.

7. Vehicle Coverage Lookup

Check the tool's compatibility with specific vehicles using the Coverage Lookup feature. It supports 60+ brands, ensuring you’re prepared for nearly any job.

8. VCI Bluetooth Wireless Diagnostics

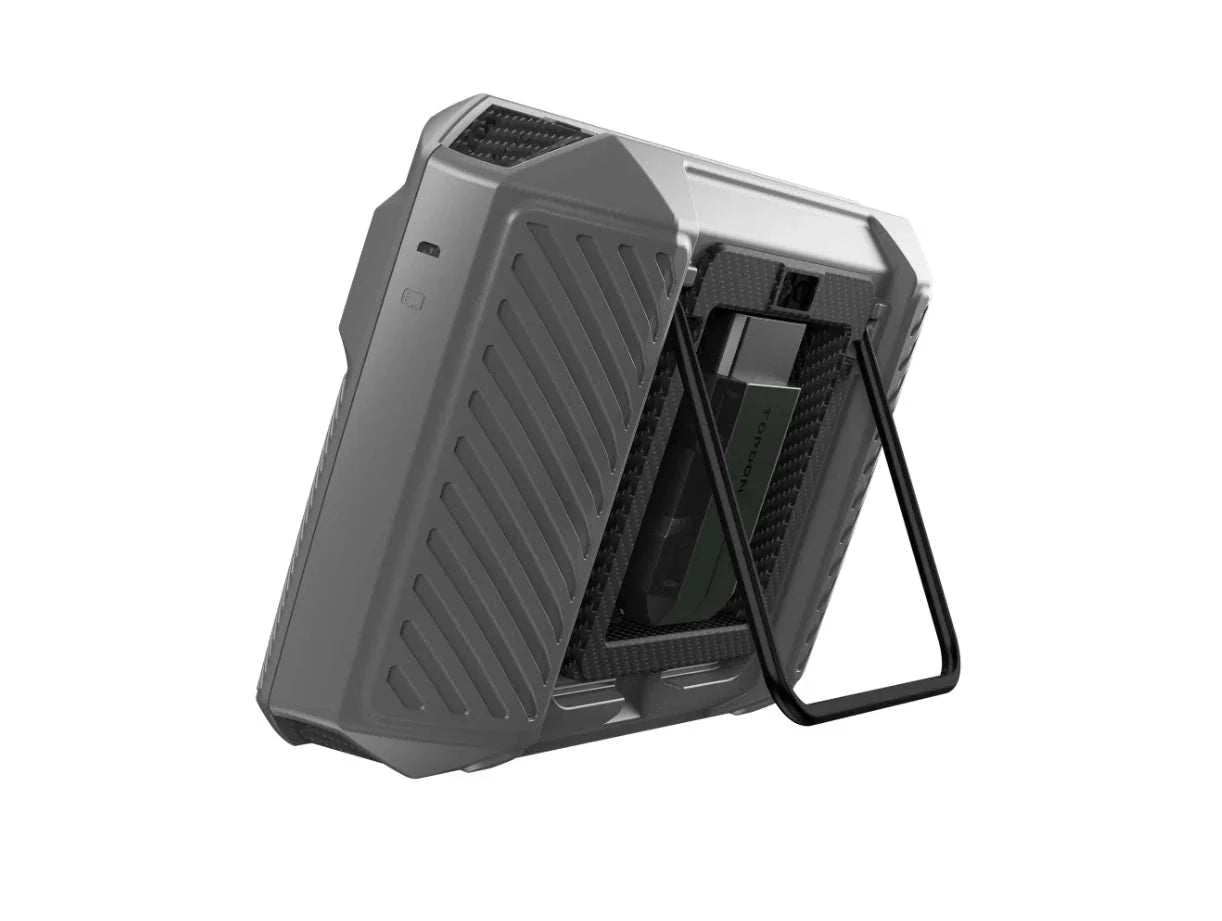

Experience flexible diagnostics with the magnetic VCI Bluetooth module, which easily attaches to the tablet for storage. Wireless connectivity allows you to move freely while working on vehicles.

---

Enhanced Hardware for Performance and Convenience

The UltraDiag is designed to deliver peak performance with improved hardware features:

• 10,000mAh Battery: Long-lasting battery life to handle full workdays without frequent charging.
• Android 11.0 OS: Fast, intuitive interface for smoother operation.
• USB-Type A Port: Provides a wired connection option for reliable data transfer.
• HDMI Port: Project diagnostics onto larger screens for better analysis.
• TF Card Slot: Expandable storage up to 128GB for storing diagnostic data and reports.

---

Optional Add-Ons for Greater Versatility

Pair the UltraDiag with TOPDON’s BTMobile ProS for wireless battery testing. This transforms the UltraDiag into a high-tech battery analyzer, giving you the ability to monitor car battery health with precision.

---

Why Choose the TOPDON UltraDiag?

• Comprehensive Coverage: Access all major systems across 60+ brands.
• Advanced Functions: Includes bidirectional controls, key programming, and reset services.
• User-Friendly Design: AutoVIN and AutoScan features save time and simplify workflow.
• Professional-Grade Hardware: Built for durability and performance with modern features.
• Flexible Diagnostics: Wireless connectivity and add-on compatibility ensure you’re always ready for more.

---

Upgrade your diagnostic capabilities with the TOPDON UltraDiag. Whether you're performing maintenance resets, testing components, or programming keys, this tool offers everything you need to deliver efficient, high-quality service.

Order your TOPDON UltraDiag today and elevate your diagnostic game!

TOPDON UltraDiag Specifications

Operating System	Android 11.0
RAM	2GB
ROM	32GB
Display	8 Inches, 1280 x 800 Resolution
Connectivity	BlueTooth 5.0 / SPP USB WiFi
Camera	5 MP
Battery	10000mAh
Ports	USB Type-A/USB Type-C/RJ45/HDMI/DC Charging Port
Input Voltage	12V DC
Dimensions	255 x 155 x 50mm
Working Temperature	0~50°C
Storage Temperature	-20~60°C



TOPDON UltraDiag - What's Included?

• UltraDiag Tablet x1

• UltraDiag VCI x1

• Power Adapter x1

• OBD-II Extension Cable x1

• USB Cable (Type-A to Type-C) x1

• Quick User Guide x1

• User Manual x1

• Carrying Case x1

• Package Box x1
